Nylon Drag Chains

High-Performance Nylon Drag Chains & Cable Carriers for Industrial Automation

Welcome to our comprehensive selection of premium nylon drag chains (also widely recognized as nylon cable carriers, energy chains, plastic cable tracks, or towline chains). Engineered from high-grade reinforced polyamide (PA66), our nylon cable carriers deliver exceptional wear resistance, high tensile strength, and superior thermal stability. They are specially designed to guide, support, and protect dynamic electrical cables, pneumatic hoses, data lines, and hydraulic pipes in continuous motion applications, effectively preventing tangling, mechanical abrasion, bending strain, and premature equipment failure.

Why Choose Our PA66 Reinforced Nylon Cable Carriers?

Compared to standard plastic energy chains or conventional steel carriers, our heavy-duty nylon drag chains offer distinct performance advantages for modern industrial automation:

• Superior Material Strength & Durability: Manufactured using top-tier PA66 engineering plastics reinforced with glass fiber, providing high impact resistance, excellent load-bearing capacity, and an extended fatigue life even under high-speed, accelerated operations.
• Lightweight & Energy Efficient: Significantly lighter than steel alternatives, reducing overall inertia and motor driving power requirements while maintaining structural integrity.
• Low Noise & Smooth Articulation: Optimized link pitch and precision hinge joint designs ensure silent performance, minimized friction, and smooth movement during high-frequency and long-travel strokes.
• Corrosion, Fuel & Chemical Resistance: Highly immune to industrial lubricants, cutting fluids, salt spray, fuels, grease, and mild acids, making them ideal for harsh machining shop floors and outdoor applications.
• Modular & User-Friendly Assembly: Designed with snap-open crossbars and interlocking chain links that simplify cable installation, field maintenance, and length adjustment without specialized tools.

Explore Our Versatile Nylon Cable Carrier Configurations

To meet the diverse engineering requirements of modern CNC machinery, industrial robotics, and automated production systems, we offer a complete lineup of structural designs:

• Open / Bridge Type Cable Carriers: Features flip-open crossbars on both inner and outer radii. Excellent heat dissipation and visual inspection for cables and hoses.
• Fully Enclosed Cable Carriers: Features sealed covers that provide 360-degree protection against flying hot metal chips, wood dust, welding spatter, and aggressive liquid coolants.
• Semi-Enclosed Cable Carriers: Strikes the perfect balance between chip protection and rapid cable fitting access.

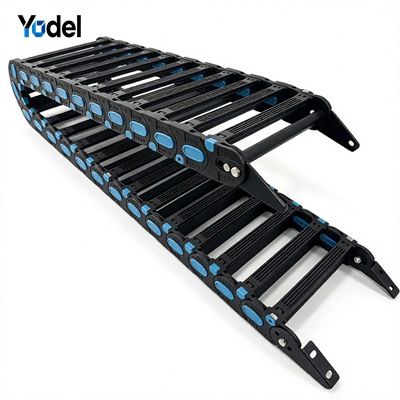

• Roller & Long-Travel Drag Chains: Integrated roller mechanisms reduce friction coefficient by over 50%, saving drive energy in long travel distances exceeding 10 meters.
• Flexible & 3D Multi-Axis Robot Carriers: Engineered for complex rotational and multi-directional bending motions in robotic arms and multi-axis equipment.

Technical Selection & Sizing Guide

Selecting the correct cable drag chain size is crucial for maximizing cable service life. When configuring your system, consider the following key technical parameters:

1. Inner Height (Hi) & Inner Width (Bi): Ensure the inner dimensions are at least 10%–15% larger than the maximum outer diameter of your thickest cable or hose bundle.
2. Bending Radius (R): Choose a bending radius based on your cable manufacturer's recommended minimum bend radius (typically 8–10 times the cable diameter) to prevent internal conductor fatigue.
3. Travel Distance & Speed: Determine whether your application requires standard gliding, self-supporting travel, or long-travel roller assistance based on stroke length and operating speed.

Broad Industrial Applications

Our industrial-grade nylon cable carriers are widely deployed across global manufacturing sectors, including CNC machining centers, automated material handling, laser cutting machines, glass processing equipment, woodworking machinery, injection molding lines, port cranes, and automated warehouse logistics (AMR/AGV systems). As a direct factory manufacturer, we provide complete engineering support, custom CAD/STEP drawings, tailored color choices, and custom mounting bracket solutions.

Frequently Asked Questions (FAQ)

Q: Can your nylon drag chains replace Igus or other major brand carriers?
A: Yes, our series dimensions and mounting hole patterns are designed to be standardized and fully compatible with leading international brands, offering a cost-effective direct OEM replacement.

Q: Do you provide custom inner partitioning and separators?
A: Absolutely. We supply a full range of vertical and horizontal dividers to keep power cables, signal lines, and pneumatic tubes neatly separated inside the carrier.



Browse our catalog below to inspect detailed series specifications, or contact our engineering team today to receive expert sizing assistance and direct factory quotes!
