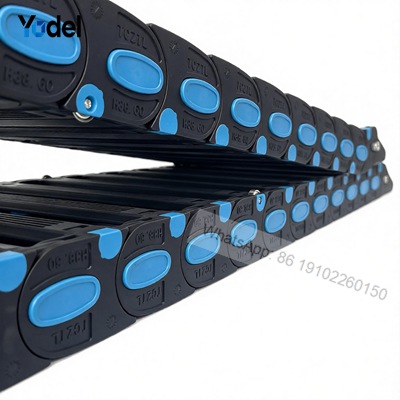

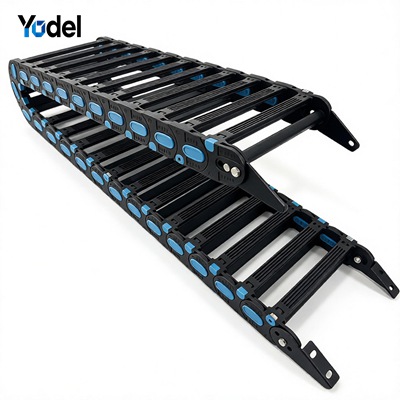

The 38mm Inner Height Nylon Roller Drag Chain is designed for long-travel cable management in industrial machinery and automation systems. Featuring a 38mm inner height, 50–200mm inner widths, and bending radius options from R75 to R250, this nylon roller cable carrier helps guide moving cables along a defined path. Custom configuration support, one-year after-sales service, and return and refund support for eligible quality issues are available.
The 38mm Inner Height Nylon Roller Drag Chain for Long Travel is designed for industrial equipment that requires organized cable guidance over extended travel distances. With a 38mm inner height, multiple inner width options, and a selection of bending radii, this nylon cable drag chain provides a flexible cable management solution for machinery with moving axes, linear motion systems, and automated production equipment.

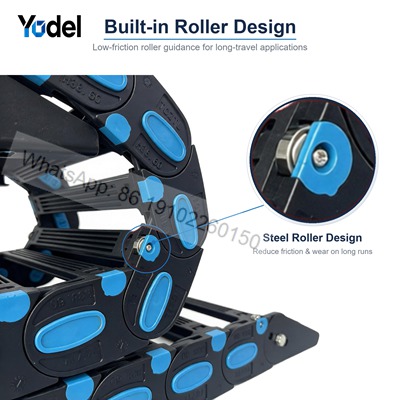

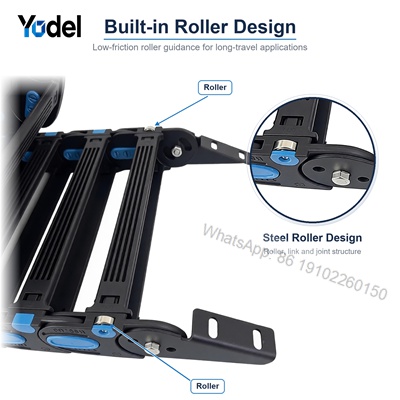

Unlike a conventional cable carrier without a rolling mechanism, a roller drag chain incorporates rollers into its structure to support movement along a suitable running surface. When correctly installed and matched to the machine design, the rollers can help reduce sliding resistance during long-travel movement. Actual performance depends on the roller arrangement, track surface, installation alignment, operating load, and travel conditions.
This cable carrier chain is available with inner widths ranging from 50mm to 200mm and corresponding outer widths ranging from 75mm to 225mm. Bending radius options include R75, R100, R125, R150, R175, R200, and R250. These choices allow equipment manufacturers and purchasing teams to evaluate different cable capacities and installation requirements within the 38mm inner-height series.
As a China drag chain manufacturer, we support industrial customers seeking cable routing products for machinery manufacturing, automation integration, and customized equipment projects. We provide specification discussions, OEM/ODM support, and one-year after-sales service to help customers identify an appropriate configuration for their applications.
| Product Name | 38mm Inner Height Nylon Roller Drag Chain for Long Travel |
|---|---|
| Product Type | Nylon Roller Cable Drag Chain |
| Inner Height | 38mm |
| Outer Height | 58mm |
| Available Inner Widths | 50mm–200mm |
| Available Outer Widths | 75mm–225mm |
| Available Bending Radii | R75, R100, R125, R150, R175, R200, R250 |
| Material | Nylon chain body; confirm the exact material grade and roller materials with the supplier |
| Customization | OEM/ODM requirements can be discussed |
| After-Sales Service | One-year after-sales service |

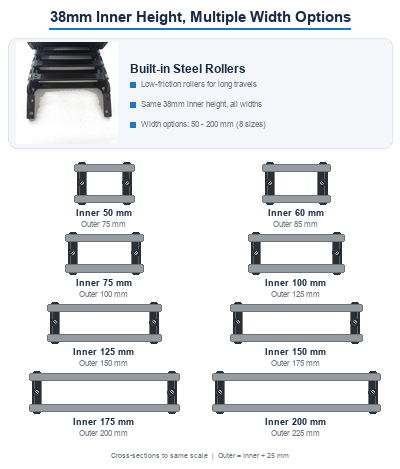

| Model | Inner Size (HxW) | Outer Size (HxW) | Status |
| 38x50 | 38mm × 50mm | 58mm × 75mm | Available Soon, chat to get a better quotation |
| 38x60 | 38mm × 60mm | 58mm × 85mm | Available Soon, chat to get a better quotation |
| 38x75 | 38mm × 75mm | 58mm × 100mm | Available Soon, chat to get a better quotation |
| 38x100 | 38mm × 100mm | 58mm × 125mm | Available Soon, chat to get a better quotation |
| 38x125 | 38mm × 125mm | 58mm × 150mm | Available Soon, chat to get a better quotation |
| 38x150 | 38mm × 150mm | 58mm × 175mm | Available Soon, chat to get a better quotation |
| 38x175 | 38mm × 175mm | 58mm × 200mm | Available Soon, chat to get a better quotation |
| 38x200 | 38mm × 200mm | 58mm × 225mm | Available Soon, chat to get a better quotation |
Note: Available dimensions and bending radii may depend on the specific model. Please confirm the matching inner width, outer width, roller configuration, connection brackets, and bending radius before ordering.
Long-travel machinery requires careful cable management because the cable carrier moves repeatedly over an extended path. Depending on the installation design, a roller mechanism can help reduce sliding contact between the moving carrier and its running surface. This can be useful when evaluating a cable drag chain for equipment with extended travel, frequent operating cycles, or demanding cable routing requirements.
Roller performance is influenced by track alignment, roller contact conditions, machine speed, load distribution, and maintenance. For this reason, the actual travel distance and operating conditions should be reviewed before selecting a product. We recommend sharing the machine layout or technical drawing when requesting a quotation for a long-travel cable carrier.
The 38mm inner height provides a defined routing space for compatible power cables, signal cables, control cables, and other approved cable types. Inner widths from 50mm to 200mm allow buyers to compare different cable arrangements and space requirements within the same product series.
When selecting a width, consider the outer diameter of every cable, the required separation between cables, the cable manufacturer's bending requirements, and the available installation clearance. Avoid filling the carrier to its maximum internal dimensions without checking the actual cable arrangement. Proper routing helps prevent excessive contact, cable interference, and unnecessary stress during movement.
This nylon roller drag chain offers R75, R100, R125, R150, R175, R200, and R250 bending radius options. The appropriate radius depends on the cable types, minimum dynamic bending radius, installation geometry, and available machine space.
These are selection guidelines, not a guarantee that a particular radius suits every cable arrangement. The cable manufacturer's minimum bending radius and the actual carrier specifications should always determine the final choice.
A cable track chain guides moving cables along a defined path and helps keep them organized as machine components travel. Compared with unsupported cable routing, a properly selected cable carrier can help reduce uncontrolled cable movement and interference with nearby equipment components.

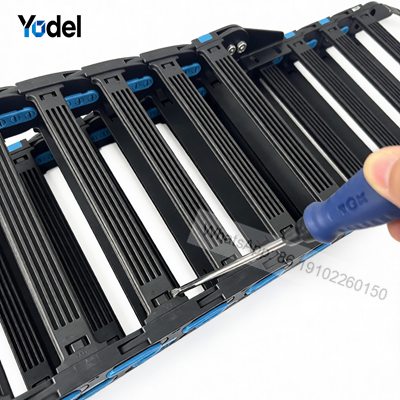

For industrial buyers, practical maintenance is also an important consideration. Before purchasing, confirm how cables are installed, whether internal separators are available, how the chain connects to the machine, and whether the complete assembly can be inspected conveniently. These details should be checked against the actual model and its technical documentation.

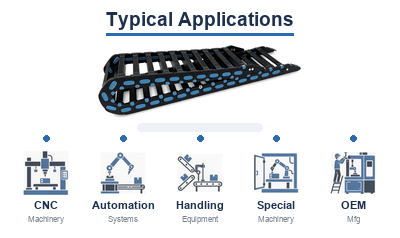

The 38mm nylon roller cable carrier may be considered for industrial equipment that requires guided cable movement over an extended travel path. Potential applications include:
These applications are examples for evaluation rather than a claim of universal compatibility. The suitable model depends on travel length, installation arrangement, machine speed, operating load, cable weight, environmental conditions, and the available running surface.
Choosing a suitable cable drag chain involves more than matching the inner height. Buyers should evaluate the complete mechanical arrangement and cable requirements before confirming an order.
List the cables and hoses that need to travel together, including their outer diameters and minimum bending radii. Consider the space required for separators and adequate clearance. The selected inner width should accommodate the actual cable arrangement without excessive crowding.
Compare the minimum dynamic bending radius of the cables with the available R75 to R250 options. Also check the carrier's required installation space and the machine's movement geometry.
For long-travel applications, provide details of the intended running surface, support arrangement, alignment, and travel conditions. Roller configuration and compatibility with the track can influence movement and wear. Confirm these requirements before finalizing the product selection.

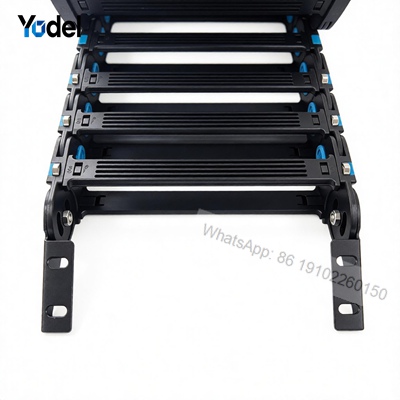

Confirm the end connection design, mounting position, and required fixing dimensions. If the selected configuration includes steel brackets, verify the bracket material, dimensions, and mounting arrangement against the machine drawing. Do not assume that every model includes the same bracket configuration.
Industrial purchasing teams need clear product information, dependable communication, and a supplier who can discuss technical requirements before an order is placed. Working directly with a drag chain manufacturer can simplify specification confirmation, customized configuration discussions, and coordination for OEM equipment projects.
As a China drag chain supplier, we welcome inquiries from machinery manufacturers, automation integrators, industrial distributors, and purchasing departments. Customers can share technical drawings, reference photographs, cable specifications, travel requirements, and estimated order quantities for evaluation. OEM/ODM requirements can be discussed according to the actual project.
For buyers comparing cable drag chain manufacturers, we recommend evaluating dimensional consistency, roller and bracket configuration, suitability for the intended travel conditions, documentation, communication, and after-sales support rather than comparing unit price alone.
We aim to provide products that correspond to the confirmed specifications and product information presented to customers. Before ordering, buyers should confirm the actual model, dimensions, available bending radius, roller arrangement, connection details, and any customized requirements. Photographs and technical drawings should represent the configuration being quoted.
We provide one-year after-sales service. If a quality issue occurs within 30 days of receipt and is confirmed to result from non-human factors, customers may request a return and refund in accordance with the applicable agreed terms and verification procedure. Customers should contact us with order details, photographs or videos, and a description of the issue so that the case can be reviewed.
For confidential projects, customers may request a nondisclosure agreement (NDA). The agreement is subject to review and mutual acceptance. Customers should arrange the NDA before exchanging confidential drawings or sensitive project information.
A nylon roller drag chain is a cable carrier that uses a nylon chain structure and incorporates rollers to support movement in a suitable installation. It is intended to guide moving cables along a defined path, with roller performance depending on the product design and operating conditions.

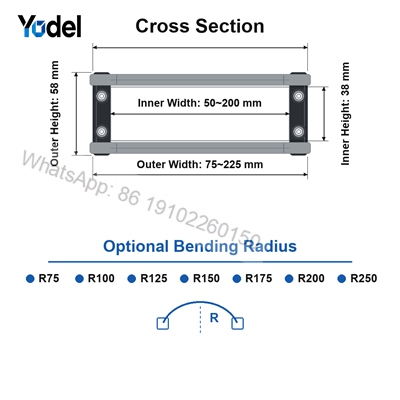

The inner height is 38mm and the outer height is 58mm. Available inner widths range from 50mm to 200mm, while the stated outer widths range from 75mm to 225mm. Confirm the exact inner and outer width combination for your selected model before ordering.
The listed options are R75, R100, R125, R150, R175, R200, and R250. The appropriate radius depends on the cables, installation geometry, and operating requirements.
It is intended for evaluation in long-travel cable management applications. Suitability depends on the complete machine arrangement, travel distance, roller and track compatibility, operating speed, cable load, and installation conditions. Share your machine drawing or technical requirements for a more accurate assessment.
OEM/ODM requirements can be discussed. Buyers may provide the required inner width, bending radius, connection dimensions, cable arrangement, and application details for review.
We provide one-year after-sales service. For a confirmed non-human-factor quality issue reported within 30 days of receipt, customers may request a return and refund under the applicable agreed terms and verification procedure.
Yes. Customers may request an NDA for confidential product drawings or project information, subject to review and mutual agreement before confidential materials are exchanged.
Looking for a 38mm inner-height nylon roller drag chain for your machinery? Contact us with your required inner width, preferred bending radius, travel distance, machine speed, cable arrangement, and connection requirements. A technical drawing or installation photograph can help us understand your application more accurately.
Whether you are sourcing a cable drag chain for a new machine or comparing cable carrier chain suppliers for ongoing OEM projects, we welcome your inquiry. Our team can discuss the available specifications, customization requirements, quotation details, and after-sales arrangements to help you evaluate a suitable solution.
Send your drawing or cable requirements to receive a suitable solution.
