3D Robot Cable Carriers

3D Robot Cable Carriers & Multi-Axis Robotic Drag Chains for Dynamic Automation

Welcome to our dedicated selection of 3D robot cable carriers (also widely recognized as multi-axis robotic drag chains, 3D triflex cable dress packs, flexible robot energy chains, or rotational cable carriers). Precision-engineered from high-grade, glass-fiber reinforced polyamide (PA66), these specialized multi-axis carriers are designed to guide and protect electrical cables, pneumatic hoses, and media lines along complex multi-axis industrial robots, 6-axis robotic arms, and 3D motion systems.

Key Advantages of 3D Robot Cable Carriers

In high-speed robotic applications where multi-directional twisting, rotational movement, and complex 3D trajectories are required, standard 2D drag chains cannot suffice. Our 3D robot cable carriers offer superior functional benefits:

• Multi-Axis Flexibility & High Torsional Strength: Supports rotational twist angles up to ±10° or more per chain link, ensuring smooth motion along 6-axis robotic articulation points without mechanical binding.
• Defined Minimum Bending Radius: Built-in bend stops enforce a precise minimum bending radius in all direction vectors, preventing excessive cable twisting, tensile strain, and fatigue failure.
• High Tensile & Dynamic Wear Resistance: Molded from premium PA66 nylon, offering long flexural fatigue endurance, high abrasion resistance, and robust impact tolerance under high-acceleration dynamic cycles.
• Fast Modular Assembly & Easy Cable Lay-In: Snap-open ball-and-socket or flexible pin link joints allow quick lengthen/shorten adjustments and rapid cable replacement during system retrofits or maintenance.
• Integrated Strain Relief & Protection: Keeps delicate robot cables, sensor wires, and pneumatic lines isolated and strain-relieved, avoiding cable friction against robotic arms or external fixtures.

Structural Types & Mounting Accessories

To match different industrial robot models, payload weights, and dynamic motion profiles, we offer comprehensive 3D robotic cable dress system components:

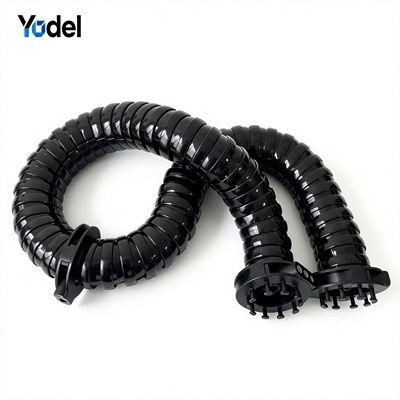

1. Closed-Tube 3D Robot Cable Carriers: Fully enclosed ball-joint flexible tubes that seal out welding spatter, hot chips, and grinding dust along robotic arm trajectories.

2. Easy-Access Snap-Open 3D Drag Chains: Features flexible slit or hinged link openings for fast sideways cable threading and instant visual inspection.

3. Retraction System & Mounting Brackets: Spring-loaded strain relief mounts, swivel brackets, and elastic retraction devices that keep the 3D chain snug against the robot arm during complex articulation.

4. Heavy-Duty Multi-Axis Energy Chains: Reinforced link structures engineered for large-payload articulated robots, material handling gantries, and heavy-duty welding cells.

Technical Selection & Sizing Guidelines

When selecting a 3D robot cable carrier for your automated robotic cell, evaluate the following key technical parameters:

1. Internal Diameter & Cable Fill Density: Select an internal cross-section that accommodates your full cable bundle while maintaining a 15%–20% clearance margin for torsional movement.
2. Degree of Rotation & Axis Range: Verify total required degree of twist per axis (e.g., Axis 3 to Axis 6) to select the matching link twist angle rating.
3. Environmental Exposure: Use closed 3D carrier tubes for robotic welding or grinding cells, and open 3D chains for general pick-and-place or assembly applications.

Key Industrial Applications

Our 3D robot cable carriers are trusted worldwide in advanced robotic automation, including 6-axis industrial robots, automated arc and spot welding cells, robotic paint spraying lines, laser cutting robots, palletizing automation, and medical 3D motion devices. As a direct factory manufacturer, we provide complete engineering design support, CAD/STEP models, complete dress pack hardware, and competitive factory-direct pricing.

Frequently Asked Questions (FAQ)

Q: What is the main difference between standard drag chains and 3D robot cable carriers?
A: Standard drag chains only bend in a single 2D plane (linear forward and back), whereas 3D robot carriers utilize flexible ball-and-socket link joints that allow full 3D bending, twisting, and multi-axis rotation.

Q: Can 3D robot cable carriers be fitted to any brand of industrial robot arm?
A: Yes, with our universal mounting brackets, strain relief clamps, and retraction springs, our 3D cable dress systems can be installed on all major robotic arm platforms.



Browse our complete 3D robot carrier catalog below or contact our technical team today for expert selection assistance and direct factory quotes!
