Bridge Type Cable Carriers

Bridge Type Cable Carriers & Open Nylon Drag Chains for Industrial Automation

Welcome to our dedicated range of bridge type cable carriers (also widely recognized as open nylon drag chains, open-style energy chains, bridge-type cable tracks, or plastic cable chains). Precision-molded from high-grade, reinforced polyamide (PA66), our bridge type cable carriers are engineered to provide maximum ventilation, exceptional tensile strength, and reliable guidance for power cables, control wiring, and pneumatic hoses in dynamic automation systems.

Key Advantages of Bridge Type Cable Carriers

In modern industrial machinery where rapid heat dissipation, low movement inertia, and easy cable installation are critical, bridge type cable carriers offer unmatched functional performance:

• Optimal Heat Dissipation & Airflow: The open bridge frame structure allows continuous air circulation around moving power cables and pneumatic lines, preventing heat buildup during high-frequency reciprocating operations.
• Lightweight & High Dynamic Performance: Constructed from glass-fiber reinforced PA66 nylon, these carriers reduce structural weight and moving inertia, allowing higher acceleration rates and smooth machine movement.
• Snap-Open Crossbars for Easy Maintenance: Features hinged or snap-open crossbars along the inner or outer radius, allowing engineers to lay in, inspect, or replace cables quickly without disassembling the carrier track.
• Smooth Cable-Friendly Interior: Smooth internal walls, rounded crossbar contours, and snap-in vertical dividers prevent cable rubbing, jacket abrasion, and mechanical strain during continuous flexure.
• Modular & Cost-Effective Design: Easily lengthen or shorten the carrier chain link-by-link to fit precise machine stroke requirements, significantly cutting down-time and maintenance costs.

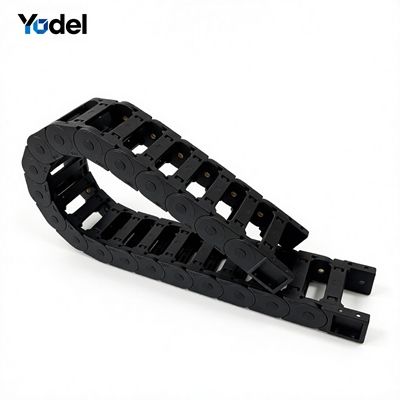

Structural Configurations & Open Frame Types

To support diverse load requirements, travel speeds, and layout spaces, we offer several specialized bridge type cable carrier configurations:

1. Snap-Open Outer Radius Bridge Carriers: Crossbars open easily along the outer bend radius, facilitating quick top-down cable lay-in for rapid assembly lines.

2. Snap-Open Inner Radius Bridge Carriers: Designed for compact machinery where access from the inner radius is preferred for cable routing and maintenance.

3. Heavy-Duty Reinforced Bridge Drag Chains: Engineered with thickened side links and robust joint pins to support longer unsupported spans, high cable weights, and high-speed gantries.

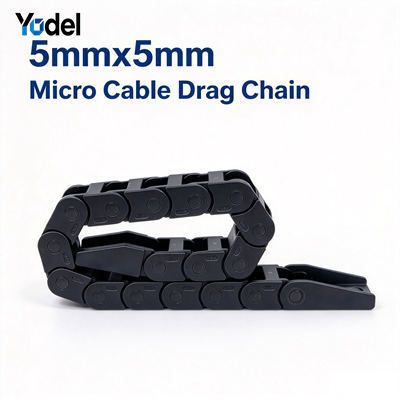

4. Compact Micro Bridge Cable Tracks: Ultra-lightweight and quiet cable carriers optimized for small-scale automation, 3D printers, medical equipment, and electronic assembly equipment.

Technical Sizing & Selection Guidelines

To select the ideal bridge type cable carrier for your automated machinery, evaluate the following key parameters:

1. Internal Height (Hi) & Width (Bi): Ensure the carrier interior height accommodates your thickest cable or hose diameter, leaving a minimum 10%–15% safety clearance margin.
2. Bending Radius (R): Choose a bend radius that meets or exceeds the minimum dynamic bending radius specified by your dynamic cable manufacturer.
3. Cable Separator Layout: Use vertical dividers and horizontal shelves to isolate power lines, encoder wires, and air hoses, preventing twisting and uneven wear during operation.

Key Industrial Applications

Our bridge type cable carriers are specified extensively across automated manufacturing, including CNC machine tools, automated packaging lines, pick-and-place industrial robots, textile equipment, woodworking machinery, automated storage/retrieval systems (ASRS), and semiconductor handling equipment. As a direct factory manufacturer, we provide complete engineering design support, custom CAD/STEP files, and factory-direct wholesale pricing.

Frequently Asked Questions (FAQ)

Q: What is the main advantage of bridge type cable carriers over fully enclosed plastic drag chains?
A: Bridge type carriers offer better thermal ventilation, lighter structural weight, and easier visual inspection, whereas enclosed carriers are designed to seal out external debris and hot metal chips.

Q: Can the length of the cable carrier be adjusted on site?
A: Yes, our modular PA66 links can be effortlessly connected or disconnected using a standard screwdriver, allowing custom length adjustments in minutes.

Browse our complete bridge type product catalog below or contact our engineering specialists today for expert sizing guidance and factory-direct quotes!
