Enclosed cable carriers

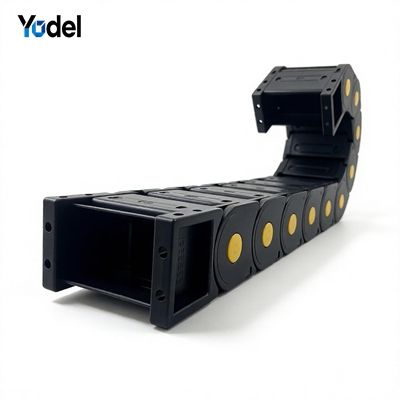

Fully Enclosed Cable Carriers & Sealed Drag Chains for Machine Tools

Welcome to our dedicated line of fully enclosed cable carriers (also widely recognized as enclosed drag chains, sealed cable tracks, closed energy chains, or protective tube drag chains). Engineered from premium glass-fiber reinforced polyamide (PA66), our fully closed cable carriers are purpose-built to deliver complete 360-degree shielding for vital power cables, pneumatic tubes, data lines, and hydraulic hoses operating in harsh machining and contaminated industrial environments.

Key Advantages of Fully Enclosed Cable Carriers

In demanding manufacturing setups where airborne particles and abrasive debris are present, open-bridge drag chains can leave internal cabling exposed. Our sealed enclosed carriers offer substantial protective benefits:

• 360-Degree Total Debris Shielding: Continuous outer covers form a solid protective tube that effectively repels flying hot metal turnings, aluminum chips, woodworking sawdust, grit, welding spatter, and liquid coolants.
• Extended Cable & Hose Service Life: By preventing hot chips and abrasive particles from settling inside the chain links, dynamic cable jackets are safeguarded against puncture, friction tearing, and thermal scorch marks.
• Snap-Open Cover Plates for Easy Access: Designed with hinged or removable lid covers along the outer or inner radius, allowing engineers to lay in cables, execute wiring maintenance, and perform inspections quickly without dismantling the chain.
• High Mechanical Load & Self-Supporting Strength: The robust closed box structure enhances torsional rigidity, reducing lateral wobble and permitting long unsupported travel lengths at high acceleration rates.
• Low Noise & Smooth Operation: Precision-molded hinge joints with optimized link pitch minimize acoustic noise and vibration during high-speed reciprocating cycles.

Structural Variants & Cover Configurations

To accommodate diverse equipment designs and servicing preferences, we offer several enclosed carrier constructions:

1. Snap-Open Covers on Outer Radius: The top lid covers unlatch effortlessly along the outer bend, allowing rapid top-down laying of cables and pneumatic hoses.

2. Snap-Open Covers on Inner Radius: Lid covers open along the inner radius curve, ideal for inverted mounting arrangements or specific machine clearance constraints.

3. Fully Enclosed Tube Type (Both Sides Openable): Features dual-side detachable covers for maximum flexibility during complex cable harness routing and retrofit projects.

4. Aluminum Cover Enclosed Carriers: Combines nylon side links with continuous aluminum top/bottom covers for elevated thermal radiation resistance in foundry and hot metal processing environments.

Technical Sizing & Selection Guide

To ensure optimal performance when selecting an enclosed cable carrier series, consider the following parameters:

1. Internal Height (Hi) & Internal Width (Bi): Allow at least a 10%–15% clearance margin above the largest cable or hose outside diameter to prevent internal crowding and thermal expansion friction.
2. Bending Radius (R): Verify that the selected carrier bend radius matches or exceeds the minimum bending radius recommended by your cable manufacturer (typically 8–10 times cable diameter).
3. Internal Separators & Shelves: Utilize vertical dividers and horizontal shelf partitions to isolate power conductors from sensitive feedback signal cables and hydraulic lines inside the sealed chamber.

Key Industrial Applications

Our fully closed energy chains are extensively specified in high-contamination operating environments, including CNC turning centers, milling machines, laser and plasma cutting systems, woodworking CNC machinery, glass processing plants, automated welding cells, foundry automation, and stone masonry equipment. As a direct factory manufacturer, we supply tailored bracket designs, custom CAD/STEP files, specialized inner separator layouts, and wholesale OEM pricing.

Frequently Asked Questions (FAQ)

Q: What is the main difference between enclosed cable carriers and open type carriers?
A: Enclosed carriers feature solid protective lids that seal out hot metal chips, dust, and aggressive liquids, whereas open type carriers feature open crossbars that provide maximum ventilation and heat dissipation in clean environments.

Q: Can the lid covers on enclosed drag chains be removed easily?

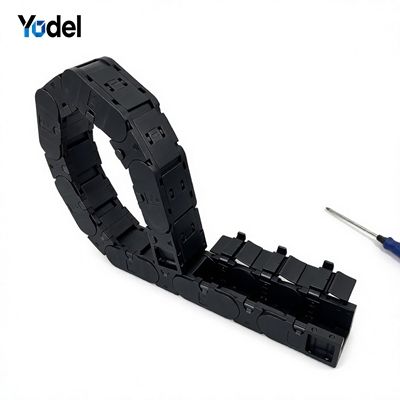

A: Yes, our enclosed series features user-friendly snap-open covers that can be unlatched using a standard screwdriver for rapid cable installation and maintenance.



Browse our complete sizing tables below or contact our engineering specialists today for expert sizing recommendations and direct factory quotes!
