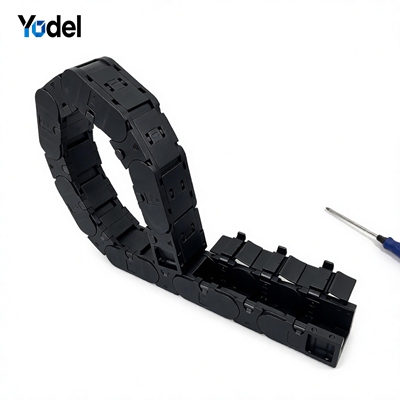

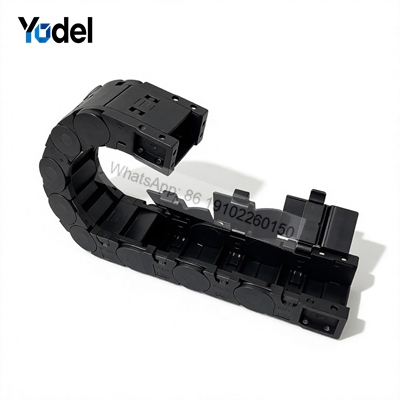

35mm Inner Height Snap Open Enclosed Cable Carrier for CNC Machine

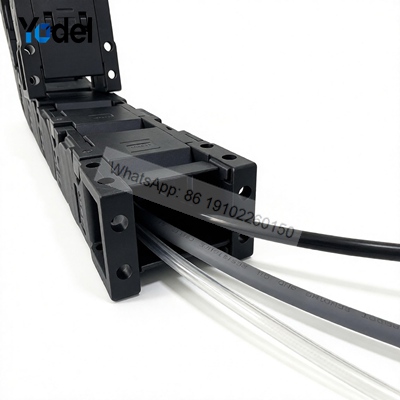

Introduction to 35mm Snap-Open Enclosed Cable Drag Chain

When operating high-speed CNC machine tools, laser cutters, or heavy-duty automation systems, exposing power cables and pneumatic hoses to flying hot metal chips, abrasive sawdust, and oil splashes can cause sudden electrical failures and costly machine downtime. As a leading china drag chain factory, Tianjin Yodel Technology Co., Ltd. introduces the 35mm Inner Height Snap Open Enclosed Cable Carrier for CNC Machine. Engineered to deliver 360-degree fully enclosed protection, this flexible cable track chain keeps your internal wiring clean, organized, and shielded against severe mechanical wear and thermal hazards.

Innovative Dual-Access Design: Hinged Snap-Open & Removable Crossbars

Unlike conventional enclosed drag chains that make internal cable installation tedious, our optimized 35mm series incorporates an operator-friendly hybrid opening mechanism designed by an experienced drag chain manufacturer:

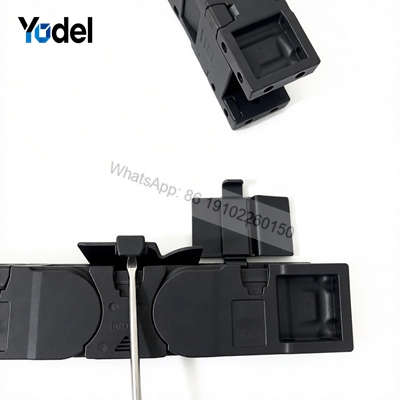

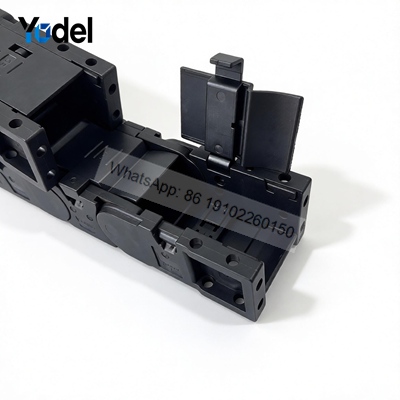

• Inner Radius Hinged Snap-Open Structure: When levered open with a standard tool, the inner crossbars flip open like a lid and remain securely hinged to one side of the chain body. This prevents loose crossbars from dropping into dark machinery cavities or getting lost during routine field inspections.

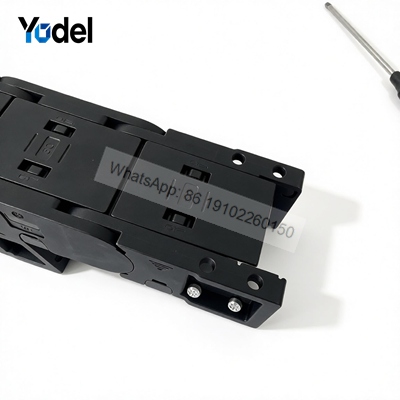

• Outer Radius Removable Crossbars: On the outer non-bending side, crossbars can be cleanly detached using a flathead screwdriver, offering complete accessibility for quick cable threading, maintenance, and emergency line replacement.

High-Grade Reinforced Nylon Construction

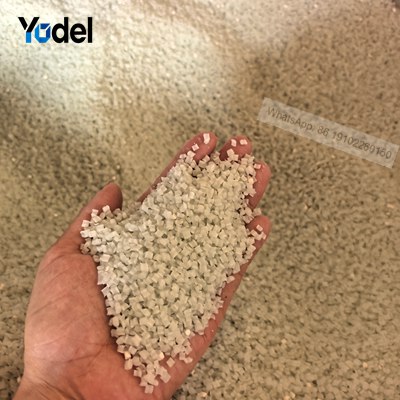

To withstand long unsupported travel lengths and rapid acceleration cycles, every link of our cable carrier chain is molded from high-performance Polyamide 66 (PA66) reinforced with premium glass fiber. Key physical properties include:

• High Mechanical Load Strength: Outstanding tensile rigidity and joint impact resistance, preventing sagging or structural cracking under dynamic stresses.
• Thermal & Chemical Endurance: Operates flawlessly across wide ambient temperatures (-40°C to +130°C) with superior resistance to cutting fluids, industrial lubricants, mild alkalis, and acids.
• Smooth & Silent Operation: Precision-molded pin joints reduce frictional noise, providing ultra-smooth motion during continuous high-speed movement.

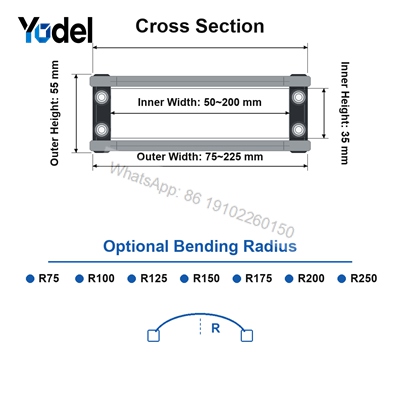

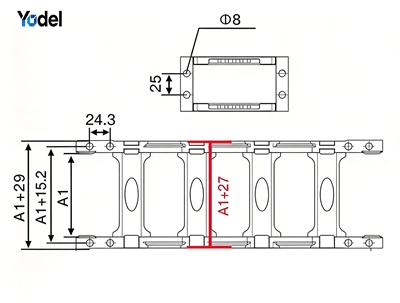

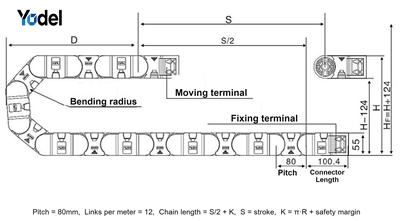

Technical Specifications & Dimension Options

Our 35mm inner height enclosed series offers an extensive selection of width choices and bending radii to match diverse CNC gantry blueprints:

Available Models

Comprehensive Service Commitments & Buyer Protection

As premier cable drag chain manufacturers, we go beyond supplying high-quality products. We prioritize risk-free procurement and long-term buyer trust through strict quality guarantees and legal compliance:

• 1-Year Warranty: Full 12-month structural warranty coverage against operational wear and manufacturing defects under normal operating conditions.
• 30-Day Quality Guarantee (Money-Back / Return Policy): What you see is what you get (WYSIWYG). If any non-human quality defect occurs within 30 days upon receiving the shipment, we offer unconditional return and refund services.
• NDA (Non-Disclosure Agreement) Support: To protect OEM clients, custom machinery builders, and equipment designers, we are fully prepared to sign legally binding NDAs upon request to safeguard your proprietary drawings and trade secrets.

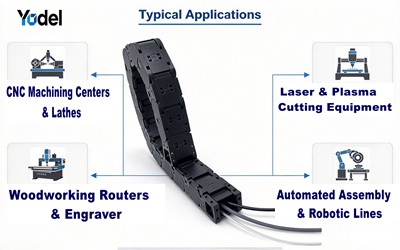

Industrial Applications

The 35mm series enclosed cable drag chain is widely installed across high-precision industrial motion systems, including:

• CNC Machining Centers & Lathes: Keeps fluid lines and power cables protected against continuous streams of metal chips and coolant spray.
• Woodworking Routers & Engravers: Prevents fine sawdust from penetrating drag chain joints and jamming dynamic movement.
• Laser & Plasma Cutting Equipment: Provides thermal insulation against high ambient temperatures and flying cutting sparks.
• Automated Assembly & Robotic Lines: Guarantees smooth, low-friction, multi-axis reciprocating movement.

Why Partner with Tianjin Yodel Technology Co., Ltd.?

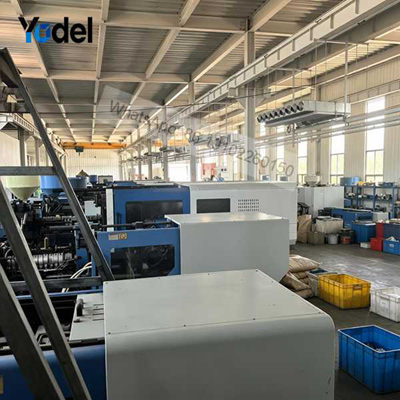

Choosing the right drag chain manufacturer makes a critical difference in machine performance. Tianjin Yodel Technology Co., Ltd. operates state-of-the-art injection molding facilities, equipped with over 400 precision mold sets and ISO-aligned testing standards. Whether you require standard modular lengths or OEM custom partition arrangements, our technical team provides rapid prototyping, transparent pricing, and dependable global shipping. Contact us today to receive CAD files, request samples, and get a factory-direct quote!

Send your drawing or cable requirements to receive a suitable solution.
