Flexible Cable Carriers

Flexible Cable Carriers & Multi-Axis Robotic Drag Chains for Dynamic Motion

Welcome to our dedicated collection of flexible cable carriers (also widely known as multi-axis drag chains, 3D robotic cable carriers, multi-flex energy chains, or omnidirectional cable tracks). Engineered from premium reinforced polyamide (PA66), our flexible cable carriers are purpose-built to accommodate complex, multi-directional, rotational, and torsional movements. Unlike traditional single-axis linear drag chains, these advanced carriers provide continuous, reliable protection and guidance for electrical cables, fiber optics, pneumatic lines, and hydraulic hoses moving across 3D motion paths.

Key Advantages of Flexible & Multi-Axis Cable Carriers

Modern industrial automation and multi-axis robotics demand dynamic cable management systems capable of bending, twisting, and rotating without causing internal wire stress or outer jacket abrasion. Our flexible carriers offer clear operational benefits:

• Omnidirectional & Multi-Axis Flexibility: Designed with spherical ball-and-socket hinge joints or multi-directional link pivots that allow up to 360-degree rotational flexibility across X, Y, and Z axes simultaneously.
• Superior Strain Relief & Torsion Control: Effectively absorbs torsional strain and torsional bending forces, preventing dynamic power cables and delicate signal lines from twisting, kinking, or snapping.
• High Tensile Strength & Impact Resistance: Molded from glass-fiber reinforced PA66 engineering plastic, providing exceptional structural rigidity, high fatigue resistance, and extended service life under continuous high-speed movement.
• Modular & Extendable Lengths: Features snap-together modular links that permit effortless field adjustments, enabling engineers to lengthen, shorten, or reconfigure carrier sections without specialized tools.
• Smooth Surface & Low-Noise Articulation: Precision-engineered link contact points ensure silent operation, low vibration, and minimal friction during rapid acceleration and robotic arm movements.

Structural Types & Configurations

To support diverse multi-axis machinery designs and motion trajectories, we manufacture several specialized flexible carrier configurations:

1. 3D Robotic Cable Carriers (Ball Joint Type): Closed or open circular-section carriers specifically engineered for 6-axis industrial robotic arms, providing smooth movement along articulated joints.

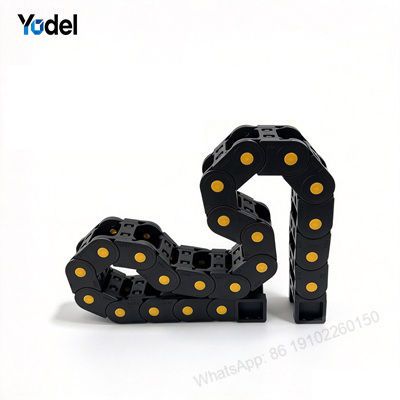

2. Multi-Directional Bending Drag Chains: Square or rectangular section carriers capable of bending in multiple directions (both inward and outward radii) for complex multi-axis automation stages.

3. Enclosed Flexible Robotic Tubes: Fully closed flexible carriers that protect sensitive cables against flying hot metal spatter, dust, welding slag, and liquid coolants in harsh robotic welding cells.

4. Compact Multi-Flex Micro Chains: Miniature flexible carriers optimized for high-precision medical devices, automated testing instruments, and compact packaging robotics.

Technical Selection & Sizing Guidelines

To select the correct flexible cable carrier for your multi-axis motion application, consider the following key technical parameters:

1. Internal Diameter & Compartmentalization: Choose an internal cross-section that leaves at least 15% clear space around dynamic cables. Use internal strain relief accessories to keep cables isolated along the neutral axis.
2. Torsional Angle & Bending Radius (R): Verify the carrier's maximum permissible torsional rotation per meter and minimum bending radius against your cable manufacturer's flex specifications.
3. Robotic Mounting Brackets & Strain Relief: Equip both fixed and rotating mounting ends with swivel brackets and strain relief clamps to absorb tension during intense robot arm articulation.

Key Industrial Applications

Our flexible cable carriers are widely implemented in high-tech manufacturing sectors, including 6-axis industrial robots, automated welding cells, multi-axis CNC machining centers, automated pick-and-place gantries, medical equipment, 3D printing machinery, and semiconductor processing lines. As a factory-direct manufacturer, we offer complete OEM/ODM engineering support, custom bracket design, STEP/CAD models, and factory-direct pricing.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between standard linear drag chains and flexible cable carriers?
A: Standard drag chains bend only along a single linear axis, while flexible cable carriers bend and twist in multiple directions (3D motion) to support multi-axis robots and rotational machinery.

Q: Can flexible cable carriers be fitted directly onto industrial robotic arms?
A: Yes. We supply specialized mounting brackets, spring retract systems, and strain relief modules designed specifically for popular industrial robot brands.



Browse our detailed catalog below to inspect size specifications, or contact our technical team today to receive expert sizing support and direct factory quotes!
