The 25mm Inner Height S-Shape Double Side Bending Cable Carrier is designed for moving cable management in industrial machinery and automation systems that require flexible routing along changing movement paths. Its S-shape configuration supports cable routing arrangements involving changes in bending direction, subject to the actual bending capability of the selected model.
This series features a 25mm inner height, 40mm outer height, inner widths from 25mm to 125mm, and outer widths from 44mm to 144mm. The minimum bending radius is R55. Buyers can choose a suitable configuration based on cable dimensions, minimum cable bending radius, machine travel, and available installation space.
As a China drag chain manufacturer, we support industrial buyers with standard model availability, OEM/ODM discussions, and product selection assistance. Common in-stock standard models can be shipped within 7 days, subject to stock and order confirmation. We provide one-year after-sales service and return and refund support for eligible quality issues not caused by human factors and reported within 30 days. An NDA can also be signed upon request to protect confidential drawings and project information.
The 25mm Inner Height S-Shape Double Side Bending Cable Carrier is designed for moving cable management in industrial machinery and automation systems that require flexible cable routing. An S-shaped routing path may involve changes in bending direction, making the carrier design and permitted movement path important factors during product selection. Buyers should confirm that the selected model's actual bending capability matches the intended machine movement.
This series features a 25mm inner height, 40mm outer height, inner widths from 25mm to 125mm, and outer widths from 44mm to 144mm. The minimum bending radius is R55, providing an option for applications where a smaller bending radius is required. The appropriate radius must still meet the minimum bending requirements of the installed cables or hoses.
| Product Name | 25mm Inner Height S-Shape Double Side Bending Cable Carrier |
|---|---|
| Product Type | S-Shape Nylon Cable Carrier / Cable Drag Chain |
| Material | PA66 with reinforced glass fiber |
| Inner Height | 25mm |
| Outer Height | 40mm |
| Inner Width | 25–125mm |
| Outer Width | 44–144mm |
| Minimum Bending Radius | R55 |
| Standard Model Availability | Common models in stock, subject to confirmation |
| Standard Model Shipping | Within 7 days for eligible in-stock models after order confirmation |
| After-Sales Service | One-year after-sales service |
| Model | Inner Size (HxW) | Outer Size (HxW) | Status |
| 25x25 | 25mm × 25mm | 40mm × 44mm | Available Soon, chat to get a better quotation |
| 25x38 | 25mm × 25mm | 40mm × 57mm | Available Soon, chat to get a better quotation |
| 25x50 | 25mm × 25mm | 40mm × 69mm | Available Soon, chat to get a better quotation |
| 25x57 | 25mm × 25mm | 40mm × 76mm | Available Soon, chat to get a better quotation |
| 26x60 | 25mm × 25mm | 40mm × 79mm | Available Soon, chat to get a better quotation |
| 26x70 | 25mm × 25mm | 40mm × 90mm | Available Soon, chat to get a better quotation |
| 25x75 | 25mm × 25mm | 40mm × 94mm | Available Soon, chat to get a better quotation |
| 25x77 | 25mm × 25mm | 40mm × 96mm | Available Soon, chat to get a better quotation |
| 25x103 | 25mm × 25mm | 40mm × 122mm | Available Soon, chat to get a better quotation |
| 25x125 | 25mm × 25mm | 40mm × 144mm | Available Soon, chat to get a better quotation |

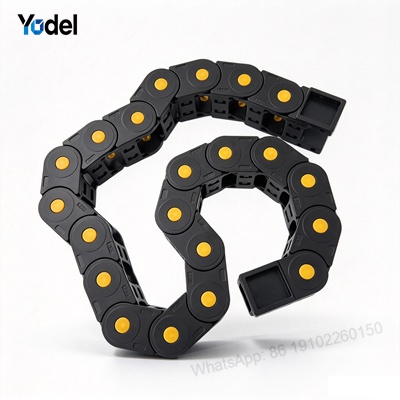

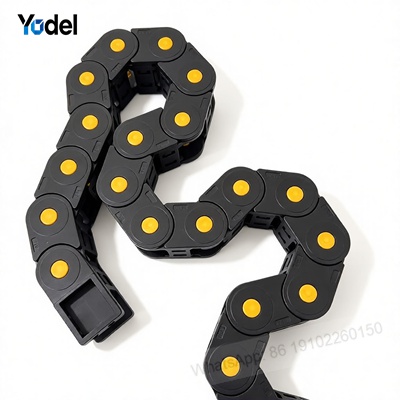

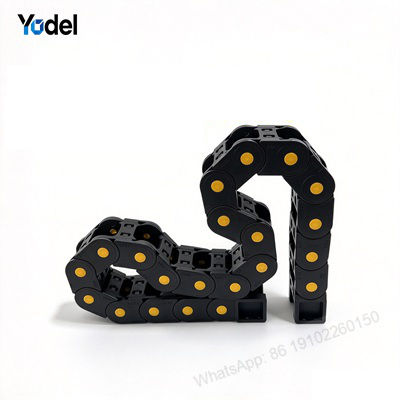

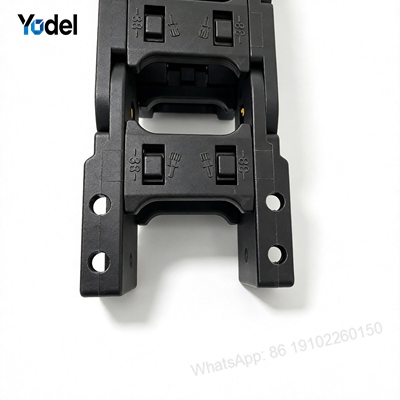

The S-shape nylon cable carrier features a bidirectional bending design, allowing cables and hoses to follow S-shaped paths during machine movement. Its flexible routing capability makes it suitable for equipment with complex movement trajectories and limited installation space. The durable nylon construction helps organize and guide cables, reducing tangling and supporting smooth cable movement. It is ideal for industrial automation, CNC equipment, and specialized machinery requiring flexible cable routing and protection.

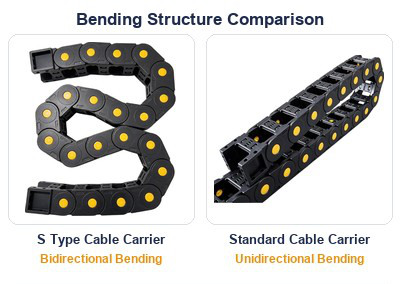

| Comparison Item | S-Shape Nylon Cable Carrier | Standard Nylon Cable Carrier |
| Structure | Specially designed links allow bending in opposite directions | Conventional links are generally designed for bending in one direction |
| Bending Direction | Bidirectional bending | Usually unidirectional bending |
| Motion Path | Suitable for S-shaped paths and reverse-bending movements | Suitable for conventional single-direction bending paths |
| Motion Flexibility | Adapts to equipment requiring changes in bending direction | Best suited to more conventional linear reciprocating movements |
| Space Layout | Offers more routing options in compact or complex machine layouts | Requires a layout compatible with its standard bending direction |
| Cable Routing | Helps guide cables and hoses through alternating curves | Guides cables and hoses along a conventional curved path |
| Typical Applications | Specialized automation equipment, telescopic mechanisms, and machinery with reverse-bending motion | CNC machines, automated production lines, and general moving machinery |
| Design Considerations | Requires checking reverse-bending geometry, installation clearance, and cable flexibility | Requires checking bending radius, installation clearance, and cable flexibility |
| Selection Priority | Bidirectional motion requirements and compatibility with the machine trajectory | Travel distance, cable bundle size, bending radius, and installation conditions |

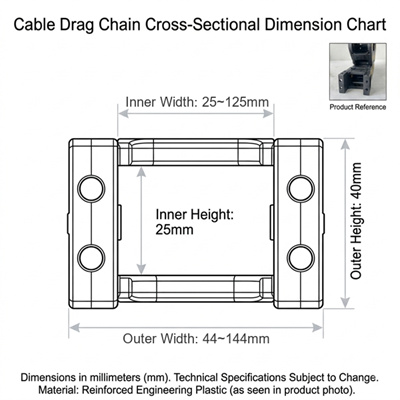

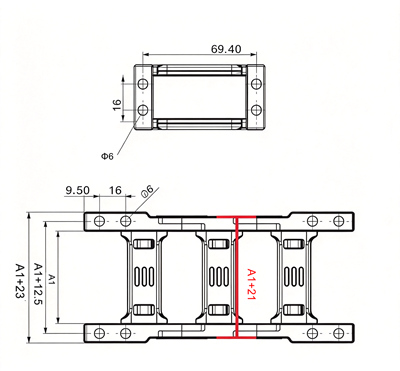

Inner widths range from 25mm to 125mm, with corresponding outer widths ranging from 44mm to 144mm across the series. These options allow buyers to evaluate different cable bundle sizes and installation spaces. When choosing a width, consider cable outside diameters, cable arrangement, movement clearance, and whether internal separators are required. Confirm the exact inner and outer width combination for the selected model before ordering.

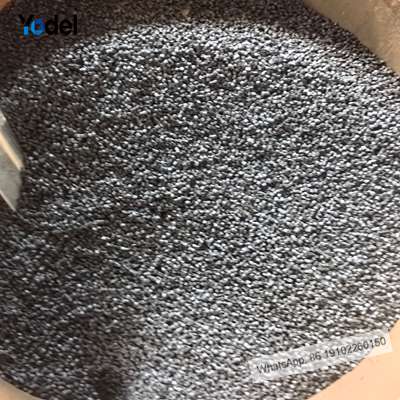

The cable carrier is made from PA66 with reinforced glass fiber. Material selection is an important factor in industrial cable management, but suitability also depends on operating temperature, travel distance, speed, loading, installation quality, and the surrounding environment. Buyers with special operating requirements should provide their application details for review before placing an order.

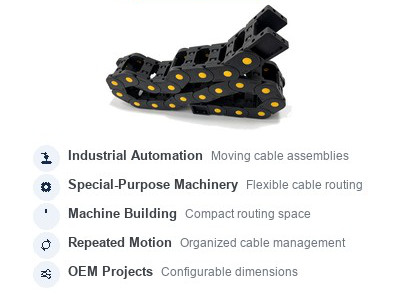

This S-shape cable drag chain may be considered for industrial machinery and automation equipment where the carrier's actual bending capability and dimensions match the intended cable routing path. Potential application categories include:
These are potential application categories rather than a guarantee of suitability for every machine. Please confirm the machine travel, movement speed, mounting arrangement, cable specifications, and working environment before selecting a model.
Measure the outside diameter of each cable or hose and plan its arrangement inside the carrier. Leave adequate clearance for movement and avoid forcing cables into an unsuitable layout. If the bundle contains different cable types, consider their individual bending requirements and whether separation is necessary.

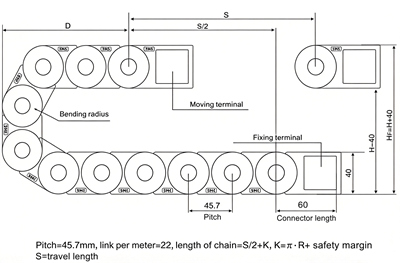

The available options are R55, R75, R100, R125, R150, R175, and R200. R55 is the minimum available radius, but the appropriate selection depends on the cable or hose specifications and the machine's movement requirements. Do not select a radius smaller than the cable manufacturer's specified minimum bending radius.
The nominal outer height is 40mm, while the outer width varies by selected model. Allow sufficient space for the complete movement path, mounting points, and surrounding machine components. Confirm the exact dimensions and installation arrangement using the relevant product drawing before finalizing the design.
For a more accurate product recommendation, share the machine type, travel length, movement speed, required inner width, preferred bending radius, cable specifications, and installation drawing if available. These details help determine whether a standard model is suitable or whether a customized configuration should be considered.

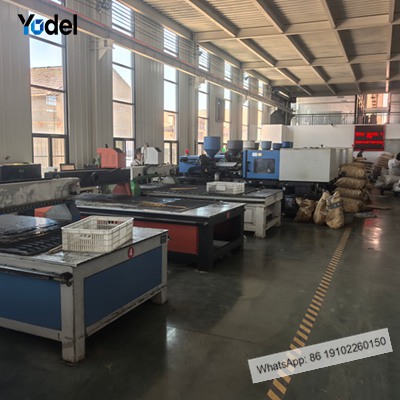

As a drag chain manufacturer in China, Tianjin Yodel Technology Co., Ltd. supports industrial buyers looking for cable drag chains, cable track chains, and cable carrier chains. We work with equipment manufacturers, engineering teams, distributors, and purchasing departments that need clear specifications and practical sourcing support.
Unlike conventional cable carriers designed for single-direction bending, an S-shape nylon cable carrier supports bending in opposite directions, making it suitable for machinery with reverse-bending movements and complex cable routing paths. This specialized design provides greater flexibility in equipment layout and cable guidance. For applications involving alternating bends, it is important to verify the carrier's bending geometry, installation clearance, and the minimum bending radius required by the cables or hoses.
The specified inner height is 25mm and the outer height is 40mm. Inner widths range from 25mm to 125mm, while outer widths range from 44mm to 144mm. Confirm the exact dimensions of the selected model before ordering.
The product is intended for S-shape cable routing. Confirm the selected model's permitted bending directions and movement arrangement to ensure compatibility with your machine design.
No. R55 is the minimum available radius, not a universal recommendation for all cable bundles. Check the minimum bending radius of the cables and hoses, as well as the carrier's permitted movement geometry, before selecting this option.
Common in-stock standard models can be shipped within 7 days, subject to stock availability and order confirmation. Customized requirements may require a different lead time.
We provide one-year after-sales service. For eligible quality issues not caused by human factors and reported within 30 days, return and refund support is available according to the confirmed order terms.
Yes. An NDA can be signed upon request to help protect confidential drawings and project information. Please raise this requirement before sharing sensitive technical documents.
Looking for an S-shape cable carrier for your industrial equipment? Send us the required inner width, bending radius, cable specifications, machine travel, movement speed, and installation drawing if available. Our team can help review your requirements and discuss a suitable standard or customized configuration.
Contact us for product specifications, in-stock model availability, OEM/ODM support, and cable drag chain sourcing assistance.
