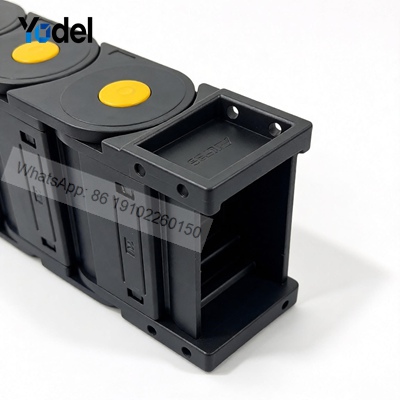

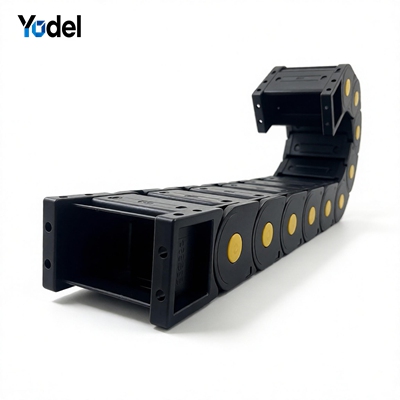

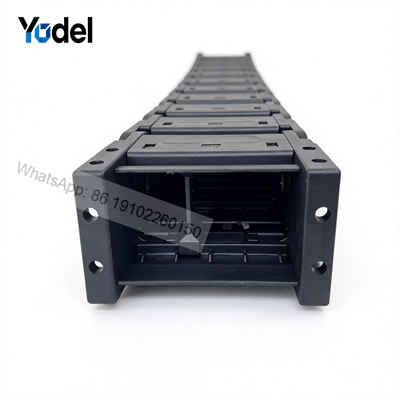

55mm Inner Height Enclosed Nylon Cable Chain for CNC Cutting Machine

Introduction to 55mm Inner Height Fully Enclosed Nylon Cable Carrier

In demanding manufacturing environments—particularly CNC laser cutting, plasma cutting, woodworking, and stone processing—hot metal chips, flying debris, dust, and liquid coolants pose severe risks to delicate power cables, control wiring, and pneumatic hoses. Our 55mm Inner Height Enclosed Nylon Cable Chain is engineered to provide complete 360-degree shielding for vital dynamic lines, preventing cable abrasion, thermal contamination, and sudden machine failure.

Manufactured using premium-grade, glass-fiber reinforced Polyamide 66 (PA66), this fully enclosed cable carrier series combines high tensile strength, low noise motion, and exceptional wear resistance. Available in both standard configurations and reinforced heavy-duty load versions, it accommodates long unsupported spans, high acceleration rates, and rigorous multi-shift CNC cutting operations.

Key Structural Features & Operational Advantages

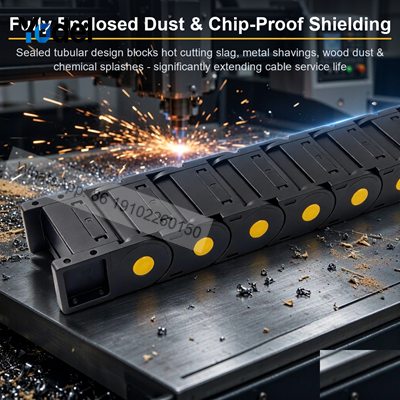

• Fully Enclosed Dust & Chip-Proof Shielding: The sealed tubular design effectively prevents hot cutting slag, metal shavings, wood dust, and chemical splashes from penetrating the internal cavity, significantly extending cable service life.
•

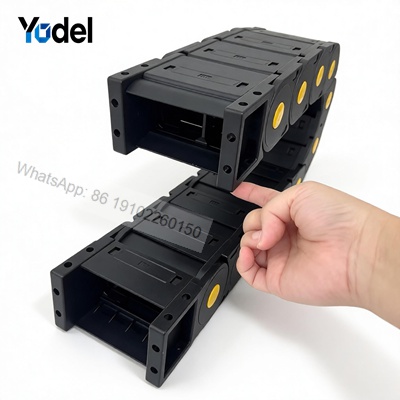

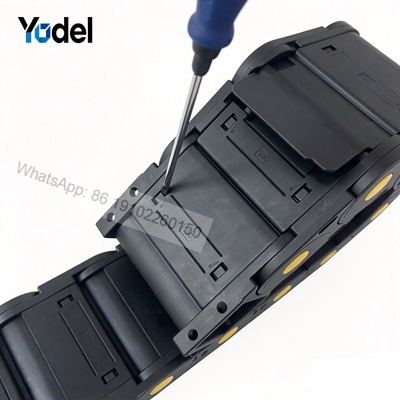

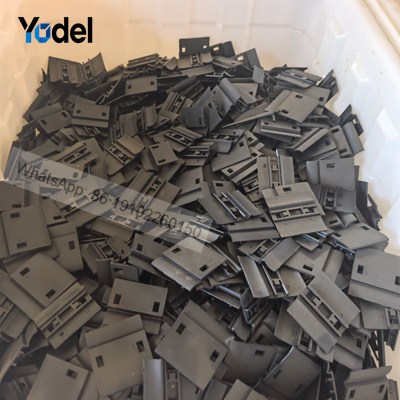

• Snap-Open Cover Plates for Easy Access: Even with a fully enclosed design, crossbars/covers on both sides can be quickly popped open using a standard screwdriver, allowing technicians to inspect, install, or replace cables rapidly without dismantling the entire chain.
•

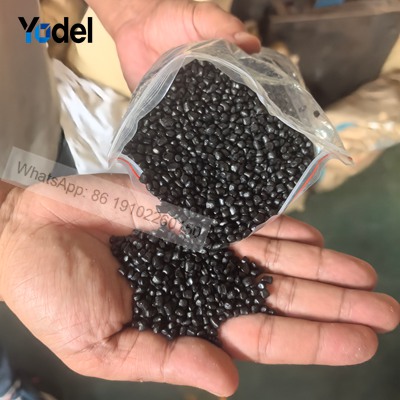

• Premium PA66 Nylon Material: Formulated with specialized UV-stabilizers and heat-resistant additives, ensuring high impact strength, flame resistance, and reliable performance in wide working temperatures from -40°C to +130°C.
•
• Available Heavy-Duty Reinforced Series: For extra-long stroke lengths, heavy hydraulic hose loads, or aggressive vibration conditions, we offer an upgraded heavy-duty series with thickened side plates and reinforced hinge pins.
•

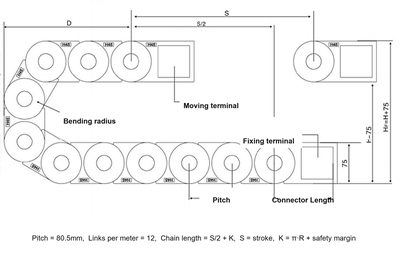

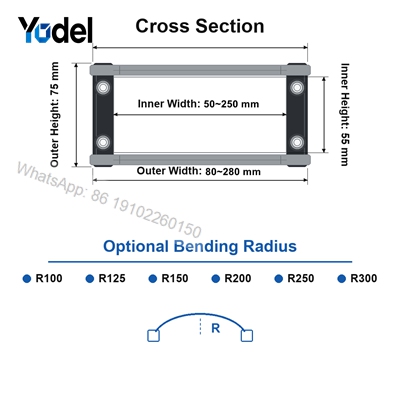

Comprehensive Specification Matrix (55mm Inner Height Series)

Our 55mm series offers a comprehensive range of standard inner widths and bending radii to suit diverse CNC machinery blueprints:

Available Models

Customization & Modular Cavity Partitioning

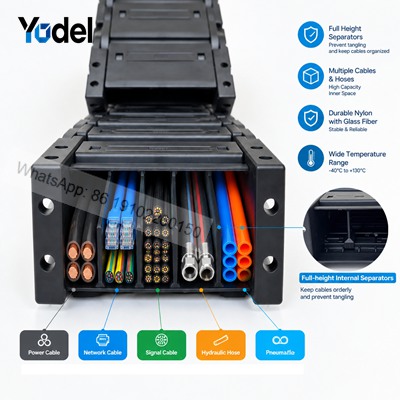

To avoid cable tangling and friction wear inside the closed space during continuous reciprocation, we provide customizable vertical and horizontal separators. Users can partition the 55mm internal space into independent conduits, separating high-voltage power cables from low-voltage signal lines or flexible fluid hoses. Furthermore, exact total travel length and mounting bracket hole configurations can be customized upon request.

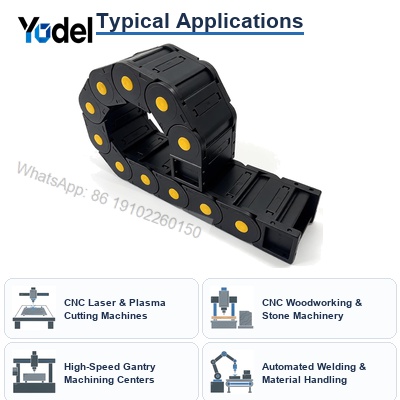

Industrial Applications

The 55mm inner height fully enclosed series is widely utilized across heavy industrial automation sector, including:

• CNC Laser & Plasma Cutting Machines: Shields internal cables against flying sparks, high thermal radiation, and molten slag.
• CNC Woodworking & Stone Machinery: Prevents fine sawdust, granite grit, and water slurry from jamming drag chain hinges.

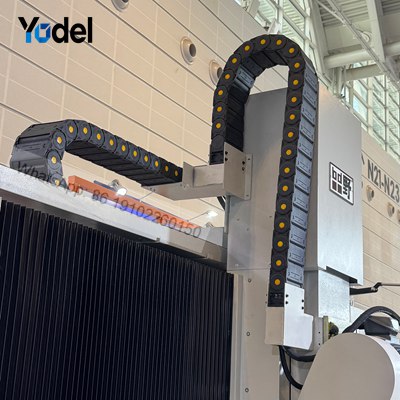

• High-Speed Gantry Machining Centers: Maintains structural alignment and smooth acceleration in multi-axis motion.
• Automated Welding & Material Handling Systems: Protects pneumatic hoses against spatter and physical impacts.

Selection & Installation Best Practices

1. Calculate Space Filling Ratio: Ensure the total diameter of all cables and hoses does not exceed 80% to 85% of the internal cavity cross-section to allow heat dissipation and smooth movement.
2. Choose Radius Appropriately: Match the drag chain bending radius (R100 to R300) to the minimum allowable bending radius specified by your cable manufacturer.
3. Select Heavy-Duty Option for High Dynamic Loads: When travel stroke exceeds 10 meters or total cable weight exceeds 15 kg/m, select our Heavy-Duty Reinforced version for optimized structural stiffness.

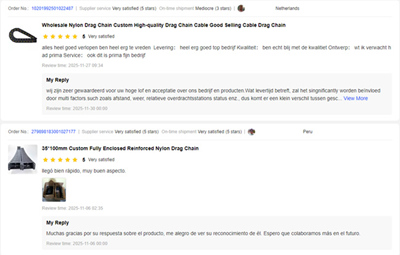

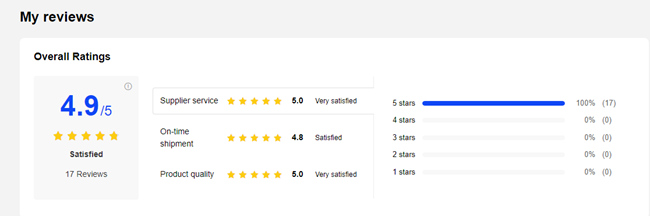

My Service and Reviews

Our nylon and steel drag chains earn high praise from global buyers across the United States, Mexico, the Netherlands, France, Saudi Arabia, Kuwait, Argentina, Israel, Malaysia, Lebanon, Chile, Peru, Uganda, etc.

All reviews shown are genuine feedback from verified customers.

We provide comprehensive after-sales support:

• 30-day return & refund for non-man-made product quality issues after delivery.
• Non-disclosure agreements can be signed upon request.
• Our support team stays online 12 hours daily to offer professional guidance.

Why Partner with Tianjin Yodel Technology Co., Ltd.?

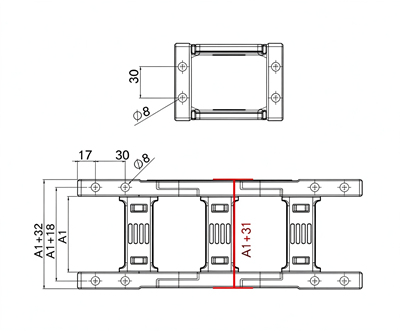

Tianjin Yodel Technology Co., Ltd. is a reputable manufacturer specializing in industrial drag chains, machine tool way covers, and CNC accessories. Operating advanced high-precision injection molds and strict factory quality protocols, we guarantee uniform link pitch, high joint durability, and prompt global delivery. Contact our engineering team today for technical CAD files, sample requests, and competitive direct factory quotes.

Send your drawing or cable requirements to receive a suitable solution.
