A 15mm inner-height snap-open semi-enclosed plastic cable drag chain designed for compact cable routing in automated equipment, small CNC machines, and light-duty industrial applications. Available in 15mm inner width and R28, R38, and R48 bending radii, it provides organized cable guidance, convenient access for maintenance, and flexible OEM/ODM customization from a China drag chain manufacturer.

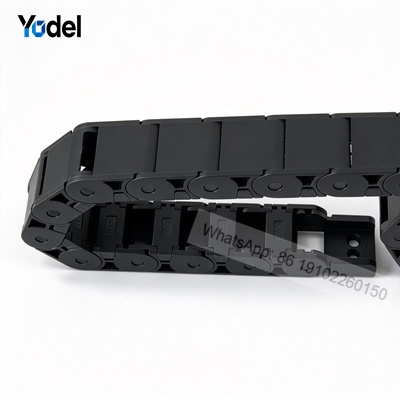

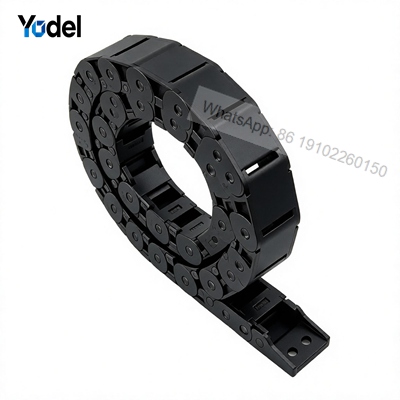

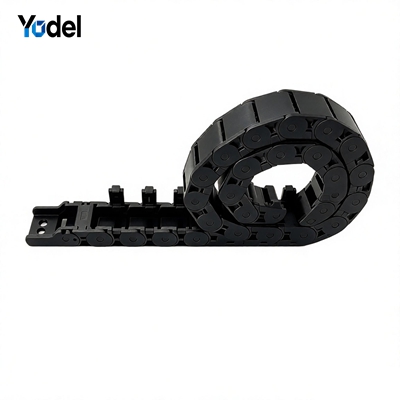

Product OverviewThe 15mm Inner Height Snap-Open Semi-Enclosed Plastic Cable Drag Chain is designed to organize, guide, and protect moving cables in compact machinery and automated equipment. With a 15mm inner height, a proposed 15mm inner width, and an outer height of 20mm, this compact cable carrier chain provides a practical solution for applications where installation space is limited and cables need to move along a defined path.
Unlike a permanently enclosed cable protection structure, a snap-open semi-enclosed cable drag chain allows convenient access to its internal space, subject to the actual opening design. This feature helps equipment manufacturers and maintenance teams install, inspect, replace, or rearrange compatible cables more efficiently. It is particularly useful for machinery that requires regular cable maintenance or periodic changes to its wiring arrangement.
As a plastic cable drag chain supplier from China, we support customers looking for practical cable management components for OEM equipment manufacturing, industrial automation, machine building, and customized machinery projects. Buyers can select from three bending radius options: R28, R38, and R48, according to cable requirements, available installation space, and the machine's movement path.
| Product Name | 15mm Inner Height Snap-Open Semi-Enclosed Plastic Cable Drag Chain |
|---|---|
| Product Type | Snap-Open Semi-Enclosed Plastic Cable Drag Chain |
| Inner Height | 15mm |
| Inner Width | 15mm, 20mm, 30mm, 40mm, subject to final specification confirmation |
| Outer Height | 20mm |
| Outer Width | 23mm, 29mm, 39mm, 49mm, subject to final specification confirmation |
| Available Bending Radii | R28, R38, R48 |
| Customization | OEM/ODM requirements can be discussed |
| After-Sales Service | 1-year after-sales service |

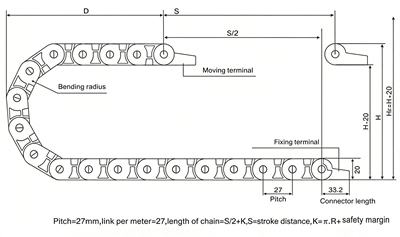

With a 15mm inner height and a 20mm outer height, this small plastic cable drag chain is intended for compact cable routing applications. Its low-profile structure can help equipment designers organize moving cables where installation space is restricted. Before ordering, buyers should check the complete chain dimensions, mounting position, travel distance, and available clearance to ensure a suitable fit.

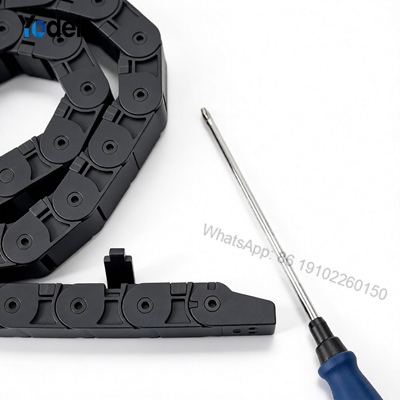

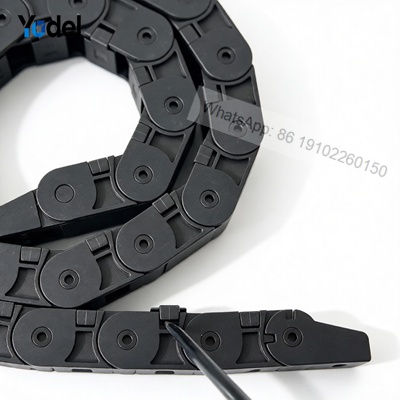

The snap-open design provides access to the cable routing space without requiring the entire cable carrier assembly to be dismantled for every routine cable adjustment. Depending on the exact chain construction, the opening structure can simplify cable installation, replacement, and inspection. This is useful for machine builders who need an accessible cable management solution and for maintenance teams who want to reduce unnecessary disassembly during servicing.

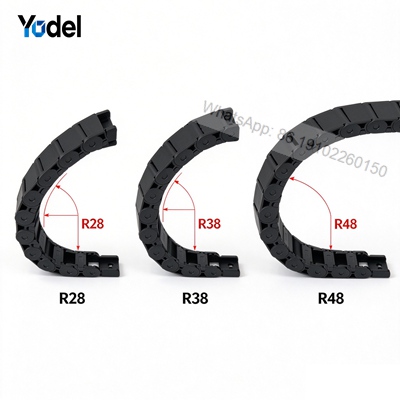

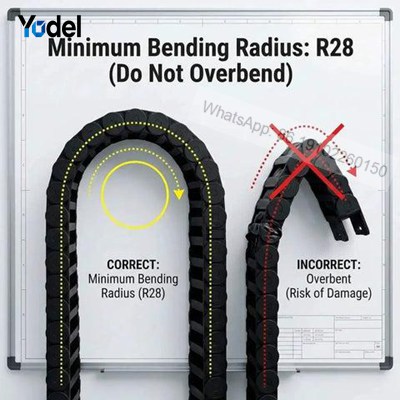

This cable carrier chain is available with R28, R38, and R48 bending radii. Choosing the correct radius is important because cables and hoses have different minimum bending requirements. A suitable radius helps prevent excessive cable bending and supports reliable movement during repeated machine cycles. The final selection should always be based on the cable manufacturer's minimum bending radius, cable diameter, dynamic movement conditions, and the available installation space.
A cable track chain keeps compatible cables routed along a defined movement path instead of allowing them to move freely around machine components. Proper cable guidance can help reduce tangling, uncontrolled cable movement, and interference with nearby mechanical parts. It also makes cable routing easier to inspect and maintain. The actual protection level depends on the chain design, installation, operating environment, and cable arrangement.
As a drag chain manufacturer serving industrial buyers, we understand that different machines may require different cable carrier dimensions, bending radii, connection arrangements, and installation configurations. OEM and ODM requirements can be discussed according to the project specifications. Buyers are encouraged to provide drawings, photographs, cable dimensions, or equipment details so that the required configuration can be reviewed before production.
The 15mm snap-open semi-enclosed plastic cable drag chain may be considered for compact equipment that requires organized cable movement. Potential applications include:
These are potential application categories rather than guaranteed compatibility claims. The chain should be selected only after checking its dimensions, bending radius, mechanical loading, movement speed, travel length, and operating environment against the requirements of the actual equipment.
The available R28, R38, and R48 options allow buyers to compare different cable routing configurations. A smaller radius may help reduce the space required for a curved cable path, while a larger radius may be necessary for cables with a greater minimum bending radius. Neither option should be selected solely on the basis of compactness.
Before confirming an order, please provide the cable outer diameters, cable types, minimum bending radius, installation dimensions, and machine travel conditions. Our team can review the information and help identify a suitable configuration.
When sourcing a cable drag chain, industrial buyers need more than a component that matches a nominal dimension. They also need clear specifications, responsive communication, consistent order requirements, and a practical process for resolving quality concerns. Working directly with a drag chain manufacturer can make it easier to discuss technical requirements, review product drawings, and evaluate customization options before placing an order.
As a China drag chain supplier, we welcome inquiries from machine builders, industrial distributors, automation integrators, maintenance teams, and OEM purchasing departments. We can discuss product selection, technical drawings, sample requirements, and customized solutions according to the project. Customers who need confidentiality for a new machine or a customized design may also request a nondisclosure agreement, subject to mutual review and agreement.
For buyers comparing cable drag chain manufacturers, we recommend evaluating dimensional accuracy, suitability for the intended movement, product documentation, communication efficiency, quality handling procedures, and after-sales support rather than comparing unit price alone. Providing complete technical requirements at the inquiry stage helps both parties assess the appropriate product more efficiently.
We provide one-year after-sales service for this product. If a quality issue occurs within 30 days of receipt and is confirmed to result from non-human factors, customers may request a return and refund in accordance with the agreed service terms and verification procedure. Customers should contact us with the order information, photographs or videos of the issue, and a description of the operating conditions so that the case can be reviewed.
To support a clear purchasing process, we aim to provide product information that corresponds to the actual item being offered. Dimensions, available configurations, and other specifications should be confirmed before ordering. If a customer has a particular design requirement, the technical details can be reviewed in advance to reduce the risk of a mismatch between the requested product and the delivered configuration.
For customized projects, a nondisclosure agreement can be signed upon request, subject to review and mutual agreement. This option is intended for customers who need to discuss confidential drawings, product concepts, or equipment-specific requirements during the sourcing process.
It is a cable carrier with an accessible opening structure designed to guide moving cables along a defined path. The semi-enclosed configuration provides a different access and routing arrangement from a fully enclosed chain. The actual opening direction and construction should be confirmed from the product drawings or photographs.

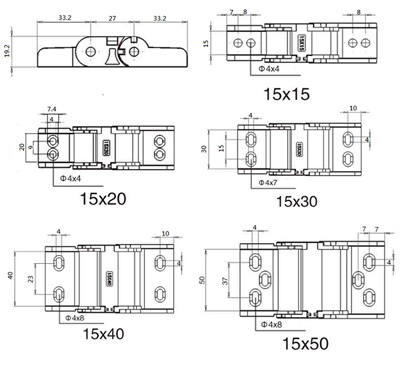

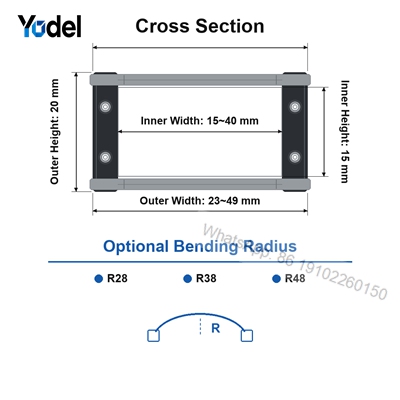

The supplied specifications are 15mm inner height, 20mm outer height, a proposed 15mm inner width, and a proposed 49mm outer width. Please confirm the inner and outer width measurements with us before ordering.
The listed options are R28, R38, and R48. The correct option depends on the cable manufacturer's minimum bending radius, cable arrangement, installation space, and movement conditions.
It may be suitable for a small CNC machine if the dimensions, cable capacity, bending radius, travel conditions, and operating environment meet the machine's requirements. Please share the relevant specifications for a compatibility review.
OEM and ODM requirements can be discussed. Buyers may send technical drawings, reference photographs, dimensional requirements, or application details for review before an order is confirmed.
We provide one-year after-sales service. For a confirmed non-human-factor quality issue reported within 30 days of receipt, customers may request a return and refund under the applicable agreed terms and verification procedure.
Yes, customers may request an NDA for confidential drawings, customized product designs, or project information. The agreement is subject to review and mutual acceptance before confidential materials are exchanged.
Looking for a compact 15mm inner-height cable drag chain for your equipment? Contact us with your required dimensions, preferred bending radius, cable specifications, application details, and estimated order quantity. If available, please attach a technical drawing or installation photograph. Our team can review your requirements and discuss the appropriate product configuration, customization possibilities, and quotation details.
Whether you are sourcing a cable drag chain for an individual machine or comparing cable drag chain manufacturers for ongoing OEM supply, we welcome your inquiry and look forward to discussing your project.
Send your drawing or cable requirements to receive a suitable solution.
