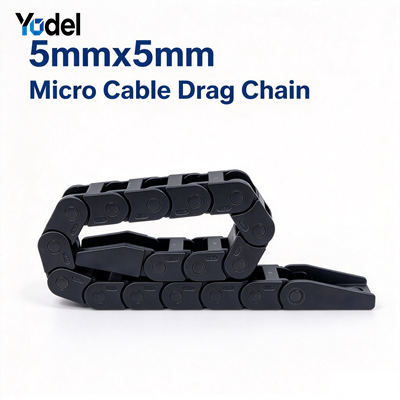

5x5mm Mini Nylon Cable Carrier

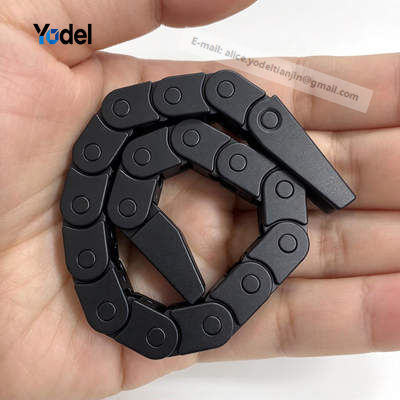

Designed for applications where installation space is extremely limited, the 5x5mm Mini Nylon Cable Carrier provides a compact solution for guiding and protecting small cables during movement.

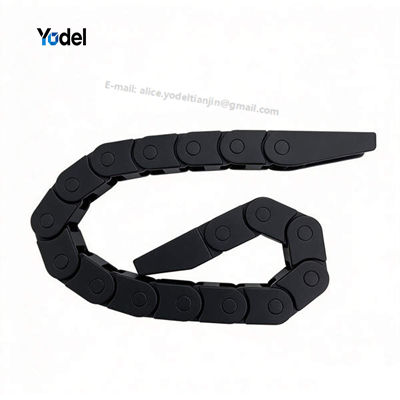

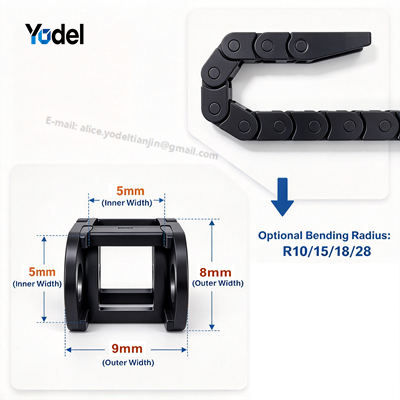

Made from PA66 reinforced with glass fiber, this miniature cable carrier has an internal height of 5 mm, an internal width of 5 mm, an external height of 8 mm and an external width of 9 mm.

Four bending radius options—R10, R15, R18 and R28—allow buyers to evaluate different routing requirements. The appropriate model depends on cable diameter, minimum permitted cable bend radius, installation space and machine movement.

Yodel provides product selection assistance and OEM/ODM support for cable carrier requirements. Contact our team with your cable dimensions or technical drawing for a suitable solution.

Parameter	Specification
Product Name	Mini Nylon Cable Carrier Chain
Inner Height	5 mm
Inner Width	5 mm
Outer Height	8 mm
Outer Width	9 mm
Bending Radius	R10 / R15 / R18 / R28 mm
Material	PA66 + Reinforced Glass Fiber
Opening Type	Non-openable
OEM / ODM	Available

The 5x5mm Mini Nylon Cable Carrier is available with four bending radius options: R10, R15, R18 and R28.

Selecting the correct radius helps ensure that the cable carrier and the cables inside it can follow the intended movement path. A smaller radius may reduce installation space, but it must remain compatible with the cable manufacturer's minimum bend radius and the machine's movement requirements.

• R10: For layouts requiring a smaller bending radius, subject to cable compatibility.
• R15: An alternative for compact cable routing.
• R18: Suitable for layouts requiring a different bend geometry.
• R28: For installations that can accommodate a larger bend radius.

Please confirm the radius definition and actual dimensions with our team before finalizing your selection.

Internal Space and Cable Compatibility

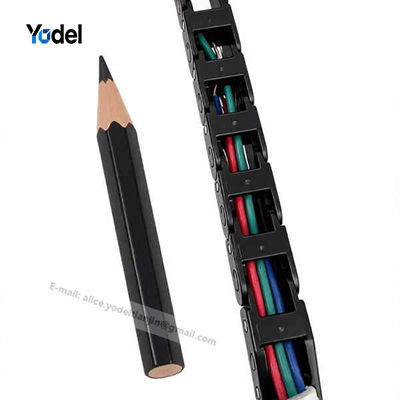

With a 5 × 5 mm internal cross-section, this mini nylon cable carrier is intended for compact cable routing applications where available space is limited.

Before selecting the product, check the following:

• Cable outer diameter and the total space required.
• The cable manufacturer's minimum bending radius.
• The required cable movement and travel distance.
• Clearance between cables and the carrier's internal surfaces.

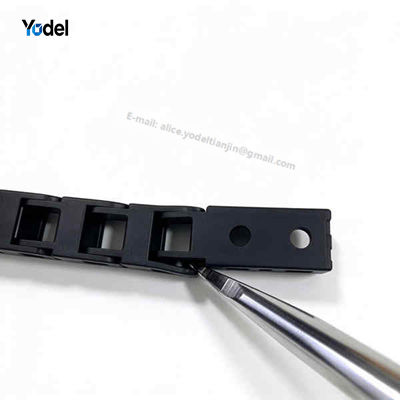

• Whether the cable can be installed and removed through the actual carrier opening.

Cable capacity depends on the cable dimensions, carrier configuration and movement requirements. Please provide your cable specifications or a photo of your cable arrangement so we can help assess compatibility.

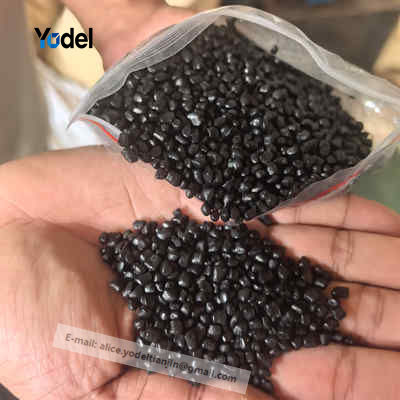

PA66 + Reinforced Glass Fiber

Our nylon cable carriers are manufactured using PA66 reinforced with glass fiber. This material specification is used across our nylon cable carrier range.

The material and carrier geometry are designed for cable guidance and protection in moving machinery applications. Actual performance depends on the product structure, operating conditions, cable arrangement and installation.

For technical requirements involving operating temperature, chemical exposure, continuous travel, service life or noise levels, please contact us to confirm the specifications applicable to this model.

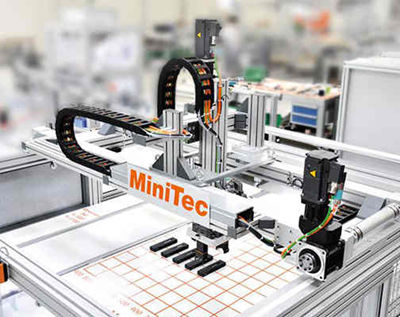

The 5x5mm Mini Nylon Cable Carrier may be considered for selected applications requiring compact cable guidance, subject to dimensional and motion compatibility.

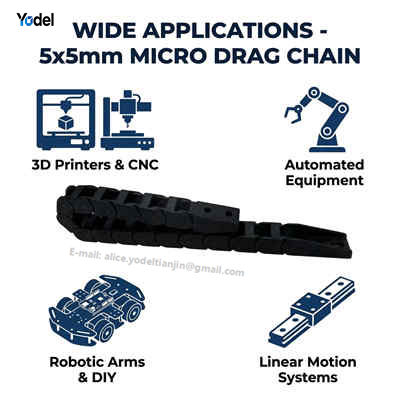

Potential applications include:

• • Compact Automation Equipment: Cable routing in small moving mechanisms.
  • Precision Instruments: Space-constrained cable management where the cable dimensions are compatible.
  • Desktop Machinery: Compact equipment with limited installation space.
  • Small Linear Motion Systems: Guided cable movement over a suitable travel distance.
  • Custom Mechanical Assemblies: OEM equipment requiring a miniature cable carrier.

Please confirm the actual installation space, cable dimensions, movement path and operating conditions before selecting this model.

Customized Cable Carrier Solutions

Yodel supports OEM/ODM inquiries for nylon cable carrier applications. If the standard 5x5mm configuration does not match your requirements, please share your technical drawing or application details for evaluation.

To help us assess your project, please provide:

• • Required inner and outer dimensions.
  • Preferred bending radius.
  • Cable outer diameter and quantity.
  • Required chain length and travel distance.
  • Installation space and mounting requirements.
  • Expected operating conditions.

Our team can review your requirements and confirm the available product configuration, customization options and lead time.

How to Select the Right Mini Cable Carrier

Step 1: Measure the Cable
Measure the cable's outer diameter and check the manufacturer's minimum bend radius.

Step 2: Check the Internal Space
Confirm that the cable can fit within the 5 × 5 mm internal cross-section with adequate clearance.

Step 3: Select the Bending Radius
Choose from R10, R15, R18 and R28 after checking cable flexibility and the machine's movement path.

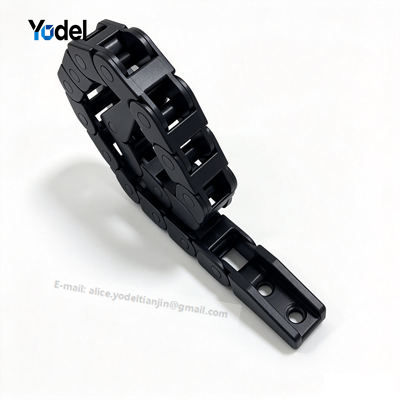

Step 4: Confirm Installation Dimensions
Check the 8 × 9 mm external profile, mounting space and connection requirements.

Step 5: Verify the Application
Confirm the required travel distance, movement frequency and operating environment before ordering.

Q1: What are the dimensions of the 5x5mm nylon cable carrier?
The internal height and width are both 5 mm. The external height is 8 mm and the external width is 9 mm.

Q2: Which bending radii are available?
The available options are R10, R15, R18 and R28. Please confirm the radius definition and required configuration before ordering.

Q3: What material is used?
The carrier is made from PA66 reinforced with glass fiber.

Q4: How many cables can fit inside?
Cable capacity depends on the outer diameter, flexibility and bend requirements of the cables. Please share your cable dimensions for a compatibility assessment.

Q5: Is this cable carrier suitable for CNC machines?
It may be suitable for selected compact mechanisms in CNC or other machinery, provided that the cable size, movement path and installation dimensions are compatible.

Q6: Can I order a customized version?
Please contact us with your required dimensions, bending radius, cable details and drawings. We will confirm which customization options are available.

Q7: How do I choose the right bending radius?
Check the cable manufacturer's minimum bend radius and the machine's routing geometry. The carrier radius must be compatible with both.

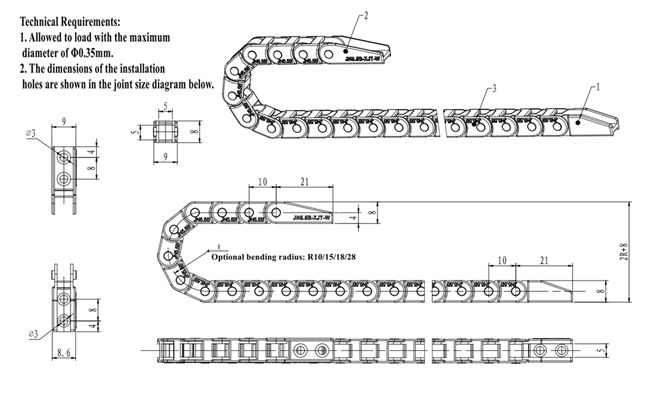

Q8: Can you provide a technical drawing?
Please contact our team to request the dimensional drawing available for this model.

Not sure whether your cable will fit inside the 5 × 5 mm internal space?

Send us your cable diameter, required bending radius or technical drawing. Our team will help review the dimensions and confirm the suitable configuration.

Send Your Drawing → Get Custom Solution
