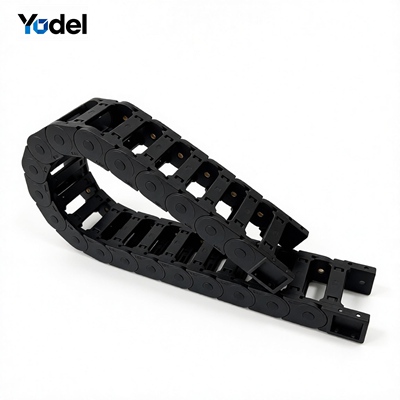

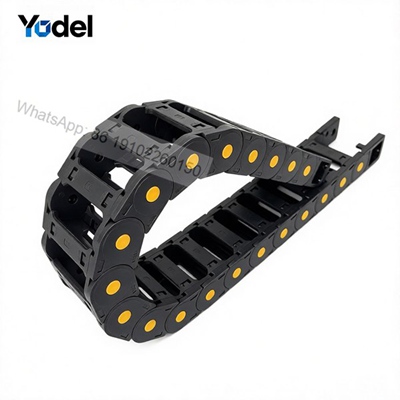

The 30mm Inner Height Bridge Type Nylon Cable Drag Chain Series is designed for applications requiring larger cable space and flexible cable routing. Manufactured from PA66 reinforced with glass fiber, this series provides reliable cable protection for CNC machines, automation equipment and industrial machinery. Multiple inner widths and bending radius options are available to meet different cable arrangement requirements.
The 30mm Inner Height Bridge Type Nylon Cable Drag Chain Series is developed for industrial applications requiring increased internal space, stable movement and convenient cable management.
With a 30mm internal height, this series provides flexible solutions for guiding and protecting power cables, control cables, signal cables and pneumatic hoses in moving machinery.
The bridge type structure allows easier cable installation and maintenance compared with fully enclosed cable carriers. Different inner widths are available to meet various cable arrangement requirements.
All nylon cable carriers in this series are manufactured from PA66 reinforced with glass fiber, providing consistent material quality and reliable performance for industrial cable protection applications.
| Series | Specification |
|---|---|
| Product Type | Bridge Type Nylon Cable Drag Chain |
| Inner Height | 30mm |
| Material | PA66 + Reinforced Glass Fiber |
| Structure | Bridge Type |
| Inner Width Options | Multiple Widths Available |

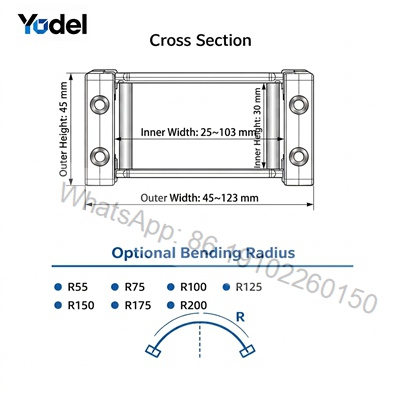

| Bending Radius | R55, R75, R100, R125, R150, R175, R200 |
| Color | Black / Customized |
| Customization | OEM / ODM Available |

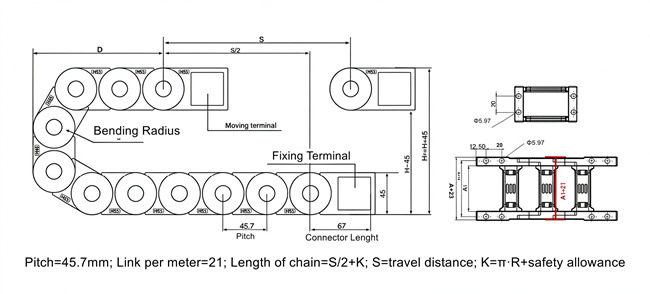

| Model | Inner Size | Outer Size | Status |
|---|---|---|---|
| 30×25 | 30mm × 25mm | 45mm × 45mm | Available Soon, chat to get a better quotation |
| 30×38 | 30mm × 38mm | 45mm × 58mm | Available Soon, chat to get a better quotation |
| 30×50 | 30mm × 50mm | 45mm × 70mm | Available Soon, chat to get a better quotation |
| 30×57 | 30mm × 57mm | 45mm × 77mm | Available Soon, chat to get a better quotation |
| 30×60 | 30mm × 60mm | 45mm × 80mm | Available Soon, chat to get a better quotation |
| 30×70 | 30mm × 70mm | 45mm × 90mm | Available Soon, chat to get a better quotation |
| 30×75 | 30mm × 75mm | 45mm × 95mm | Available Soon, chat to get a better quotation |
| 30×77 | 30mm × 77mm | 45mm × 97mm | Available Soon, chat to get a better quotation |
| 30×103 | 30mm × 103mm | 45mm × 123mm | Available Soon, chat to get a better quotation |

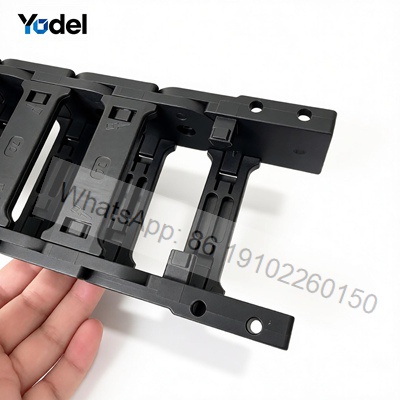

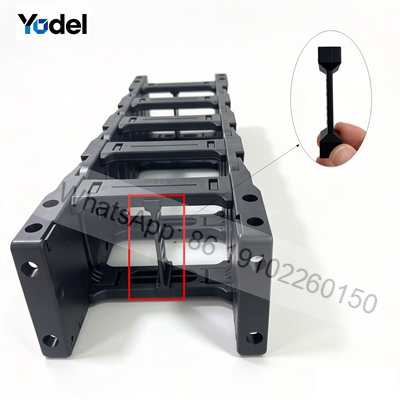

The bridge type design provides convenient access to internal cables and hoses.

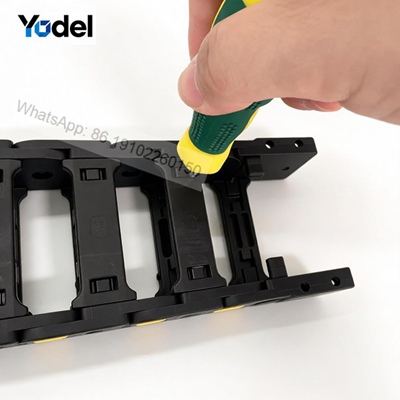

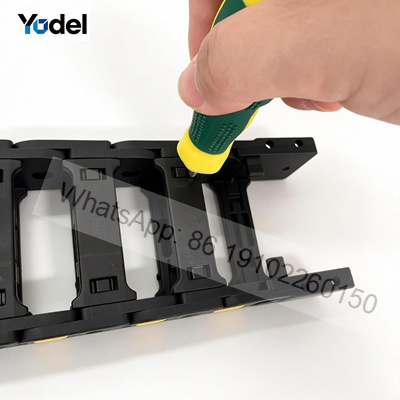

Compared with enclosed structures, bridge type cable carriers allow faster cable installation, easier inspection and flexible cable arrangement.

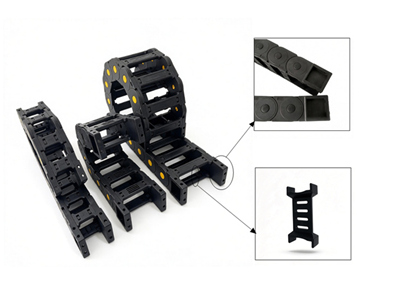

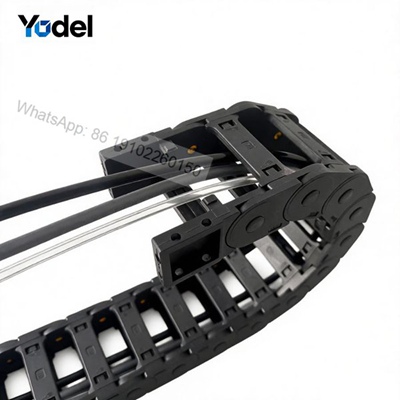

The reinforced link structure helps maintain stable movement performance during repeated machine operation.

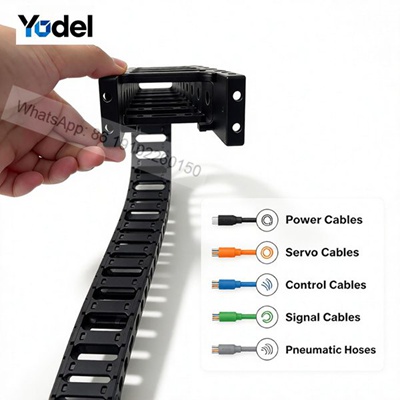

The 30mm inner height series provides sufficient space for different cable configurations.
Typical cable arrangements may include:
The actual cable capacity depends on cable diameter, bending requirements and recommended installation clearance.
Please provide your cable specifications for professional selection assistance.

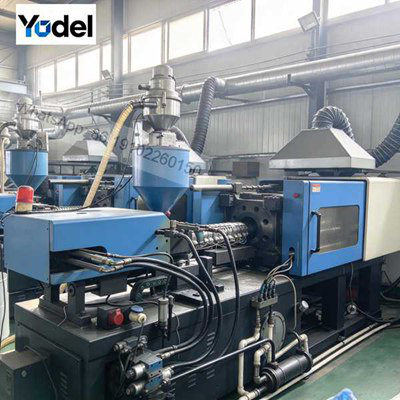

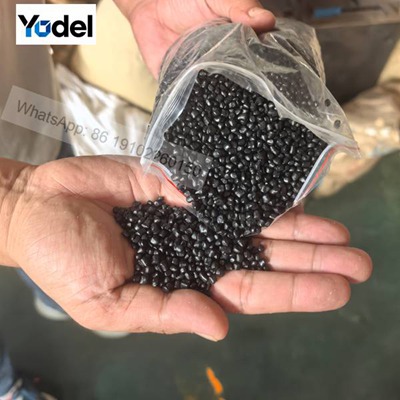

Our nylon cable drag chains are manufactured using PA66 reinforced with glass fiber.
This material combination provides a balance of strength, flexibility and durability for industrial cable guidance applications.
Consistent material selection ensures stable quality across different nylon cable carrier models.

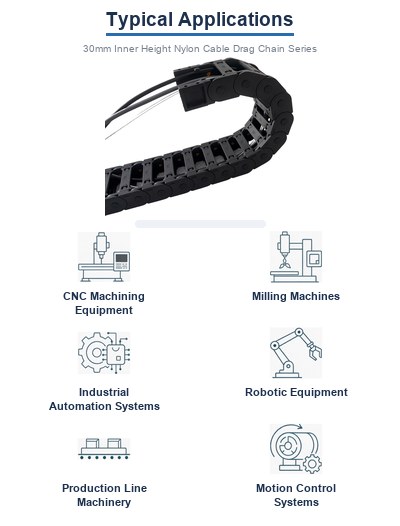

The 30mm Inner Height Nylon Cable Drag Chain Series is suitable for various industrial applications, including:
Application suitability depends on cable requirements, installation space and operating conditions.
Yodel provides customized nylon cable carrier solutions according to customer requirements.
Customization options include:

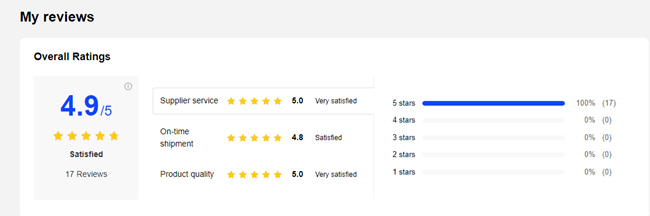

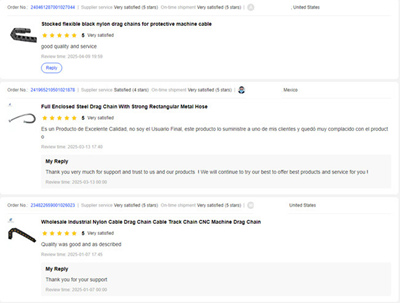

Our nylon and steel drag chains earn high praise from global buyers across the United States, Mexico, the Netherlands, France, Saudi Arabia, Kuwait, Argentina, Israel, Malaysia, Lebanon, Chile, Peru, Uganda, etc..
All reviews shown are genuine feedback from verified customers.
We provide comprehensive after-sales support:
Send your drawing or cable requirements to receive a suitable solution.
