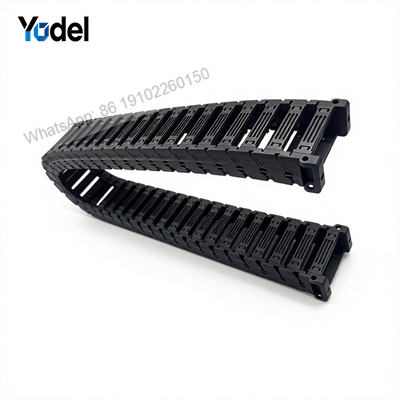

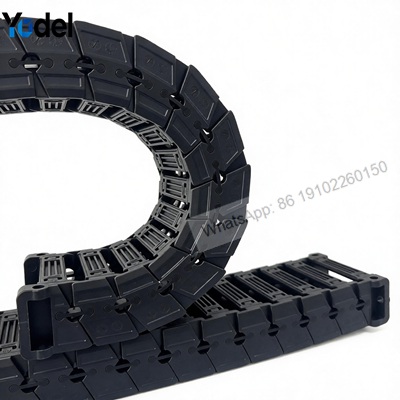

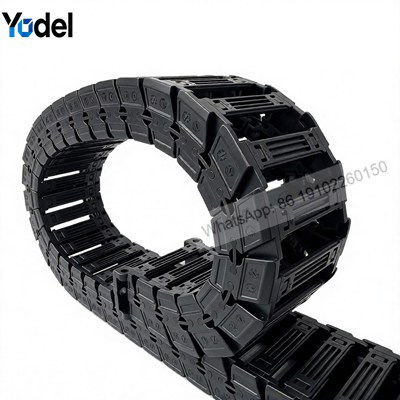

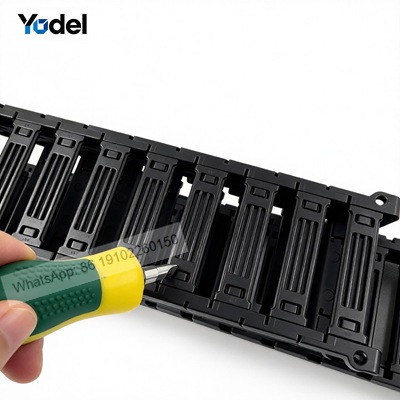

The 25mm Inner Height Silent Nylon Cable Drag Chain is designed to guide and protect moving cables in industrial machinery and automation systems. With a 25mm inner height, inner widths ranging from 25mm to 103mm, and bending radius options from R75 to R250, it provides flexible configuration choices for different cable routing requirements.
Its silent design makes it a suitable option for applications where noise during continuous movement is a consideration. The nylon cable carrier helps organize power cables, control cables, signal cables, and other compatible lines along a defined moving path. Buyers can select a suitable width and bending radius according to cable dimensions, movement requirements, and installation space.
As a cable drag chain manufacturer in China, we support product selection, OEM/ODM requirements, and customized cable management solutions. Common standard configurations can be shipped within 7 days, subject to stock and order confirmation. We provide one-year after-sales service and return and refund support for eligible quality issues reported within 30 days that are not caused by human factors. An NDA can also be signed upon request to protect customer drawings and project information.
The 25mm Inner Height Silent Nylon Cable Drag Chain is designed for organized cable routing in moving industrial machinery and automation systems. It helps guide power cables, control cables, signal cables, and other compatible lines along a defined travel path while supporting repeated movement. With multiple width options and a range of bending radii, this nylon cable carrier can be configured to meet different installation and cable management requirements.
For equipment manufacturers, machine builders, system integrators, and industrial spare parts distributors, selecting a suitable cable drag chain involves more than checking its nominal dimensions. Inner space, cable diameter, bending radius, travel direction, installation clearance, and operating conditions all need to be considered. Our product range provides several configuration options to help buyers identify a suitable solution for their equipment.
| Product Name | 25mm Inner Height Silent Nylon Cable Drag Chain |
|---|---|
| Product Type | Silent Nylon Cable Drag Chain / Cable Carrier |
| Material | PA66 with reinforced glass fiber |
| Inner Height | 25mm |
| Outer Height | 35mm |
| Inner Width | 25–103mm |
| Outer Width | 45–123mm |
| Bending Radius Options | R75, R100, R125, R150, R175, R200, R250 |
| Customization | Configuration support and OEM/ODM services |
| Standard Model Lead Time | Shipment within 7 days for eligible standard configurations, subject to stock and order confirmation |
| After-Sales Service | One-year after-sales service |
| Model | Inner Size (HxW) | Outer Size (HxW) | Status |
| 25x25 | 25mm × 25mm | 35mm × 45mm | Available Soon, chat to get a better quotation |
| 25x38 | 25mm × 38mm | 35mm × 58mm | Available Soon, chat to get a better quotation |
| 25x57 | 25mm × 57mm | 35mm × 77mm | Available Soon, chat to get a better quotation |
| 25x77 | 25mm × 77mm | 35mm × 97mm | Available Soon, chat to get a better quotation |
| 25x103 | 25mm × 103mm | 35mm × 123mm | Available Soon, chat to get a better quotation |

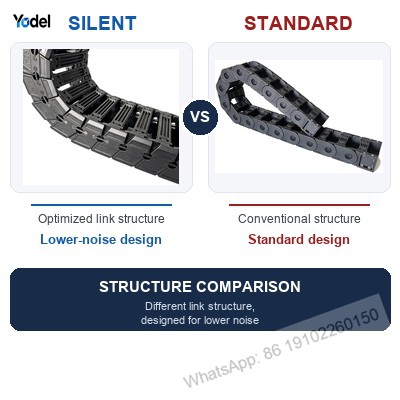

Noise during repeated movement can be an important consideration when selecting a cable carrier for industrial equipment. This silent nylon cable drag chain is intended for applications where smooth cable guidance and movement noise are relevant to equipment design. Actual noise performance depends on operating speed, installation, loading, surrounding structures, and working conditions. Contact us if your project requires specific noise test data or acceptance criteria.
The 25mm inner height series offers inner widths from 25mm to 103mm, with corresponding outer widths ranging from 45mm to 123mm across the product range. This gives buyers options for different cable bundles and installation spaces. Before ordering, confirm the exact inner width and its corresponding outer width for the selected model rather than relying only on the overall range.
Available bending radius options include R75, R100, R125, R150, R175, R200, and R250. The correct radius should be selected according to the minimum bending radius of the installed cables or hoses, the chain configuration, and the machine's movement requirements. A suitable bending radius helps avoid unnecessary stress on cables during repeated motion.

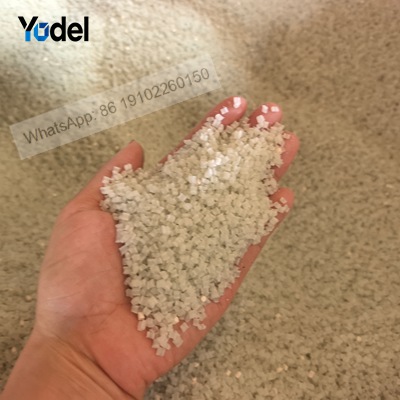

The nylon drag chain is made from PA66 with reinforced glass fiber. Material selection is an important factor in cable carrier performance, but the suitability of a specific model also depends on operating temperature, mechanical loading, travel length, speed, and installation conditions. Buyers with special operating requirements should provide their application details for confirmation before placing an order.

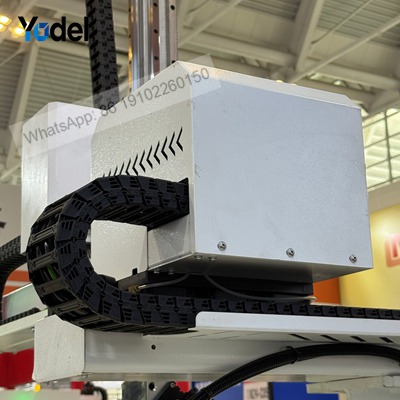

This nylon cable drag chain may be considered for moving cable management in industrial machinery and automation equipment where its dimensions, bending radius, and movement characteristics meet the application requirements. Potential applications include:
These are potential application categories, not a guarantee of suitability for every machine. Please confirm the travel length, speed, cable bundle, mounting arrangement, and operating environment for your specific project.

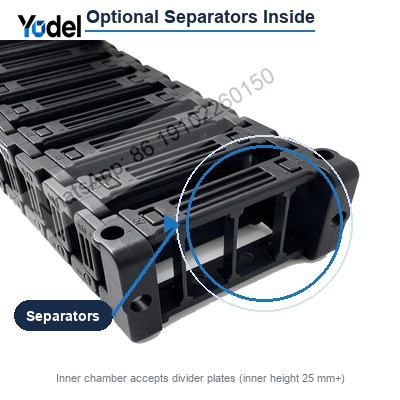

Measure the outside diameter of each cable or hose and determine how the lines will be arranged inside the chain. Leave adequate clearance for movement and separation. Do not choose an inner width based only on the total cable diameter; the arrangement, cable flexibility, and need for internal separators may also affect the required space.
Check the minimum bending radius specified by the cable or hose manufacturer. Select a compatible drag chain radius that does not force the cables to bend more tightly than permitted. If the cable bundle contains different types of lines, use the most restrictive applicable bending requirement when evaluating the configuration.
The chain has a nominal outer height of 35mm, while outer width varies by selected model. Allow additional clearance for the moving path, mounting points, and surrounding machine structures. Confirm the actual dimensions and the required travel arrangement before finalizing the design.
For a more accurate recommendation, share the machine type, travel length, movement speed, cable specifications, required inner width, preferred bending radius, and installation drawings if available. Our team can help review the configuration and clarify which standard or customized option is appropriate.
As a drag chain manufacturer in China, Tianjin Yodel Technology Co., Ltd. supports buyers looking for cable drag chains, cable track chains, and cable carrier chains for industrial equipment. We work with equipment manufacturers, engineering teams, distributors, and purchasing departments that need clear specifications and practical configuration support.

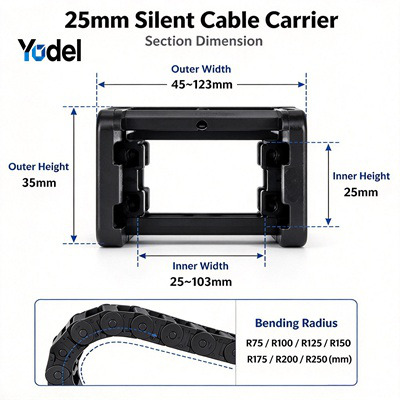

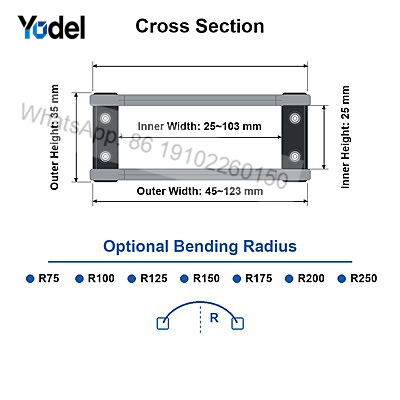

The nominal inner height is 25mm, and the outer height is 35mm. Please confirm the selected model's dimensional drawing before ordering.
The series covers inner widths from 25mm to 103mm. The corresponding outer width ranges from 45mm to 123mm. Contact us to confirm the exact inner and outer width combination for your required model.
The available bending radius options are R75, R100, R125, R150, R175, R200, and R250. The appropriate radius depends on cable requirements and the machine's movement arrangement.
Not necessarily. The silent design may be suitable for noise-conscious applications, but actual noise levels vary with speed, loading, installation, and working conditions. If a project has a defined noise limit, please share the requirement so that performance can be evaluated appropriately.
Common standard configurations can be shipped within 7 days, subject to stock availability, order confirmation, and the agreed shipping arrangements. Customized orders may require a different lead time.
We provide one-year after-sales service. For eligible quality issues that are not caused by human factors and are reported within 30 days, return and refund support is available according to the confirmed order terms.
Yes. An NDA can be signed upon request to help protect customer drawings, project information, and confidential technical details. Please raise this requirement before sharing sensitive documents.
Looking for a suitable cable carrier for your machinery or automation project? Send us your required inner width, bending radius, cable specifications, travel conditions, and estimated quantity. If available, attach a drawing or photo of your current cable routing arrangement. Our team can help review your requirements and provide a quotation for the appropriate configuration.
Contact us for product details, standard model availability, OEM/ODM discussions, and cable drag chain sourcing support.
