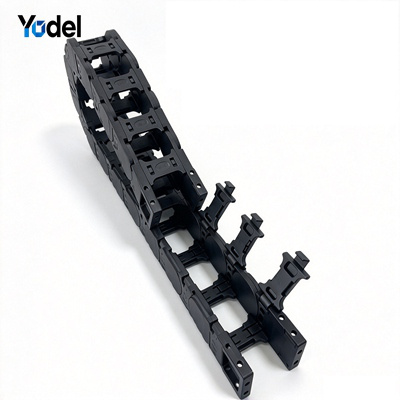

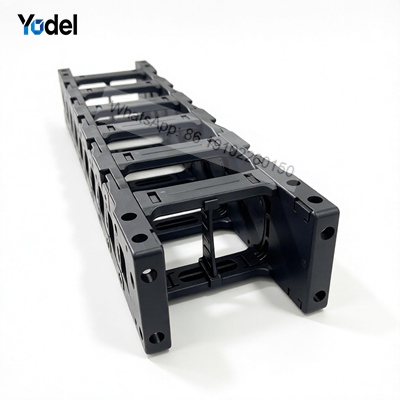

45mm Inner Height Side Open Bridge Reinforced Nylon Cable Carrier Chain

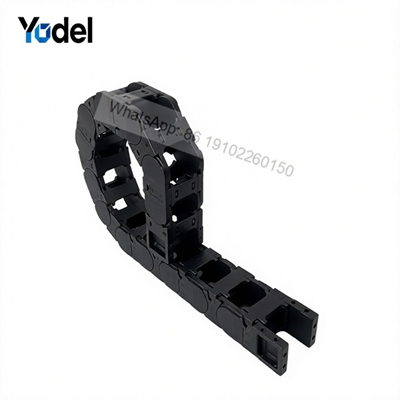

Introduction to 45mm Inner Height Side Open Reinforced Nylon Cable Carrier

In modern industrial machinery and high-speed automated production lines, the stability and lifespan of cables, hydraulic hoses, and pneumatic tubes are paramount. Selecting a reliable cable protection system prevents unexpected machine downtime and reduces costly maintenance. Our 45mm Inner Height Side Open Bridge Reinforced Nylon Cable Carrier Chain is specifically engineered to meet these rigorous operational demands. Designed with an optimal balance of structural rigidity, low-friction operation, and exceptional flexibility, this drag chain guarantees maximum protection for dynamic wiring setups across various industrial applications.

Innovative Dual-Side Access & Hybrid Structure

What sets this 45mm inner height cable carrier apart from conventional drag chains is its innovative, operator-friendly dual-side access design:

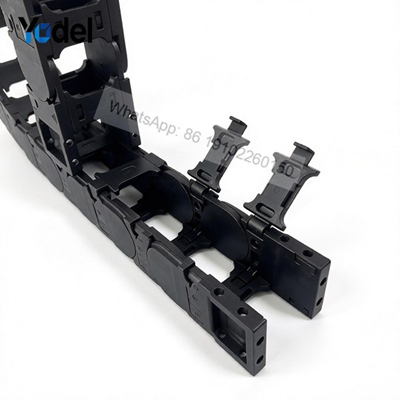

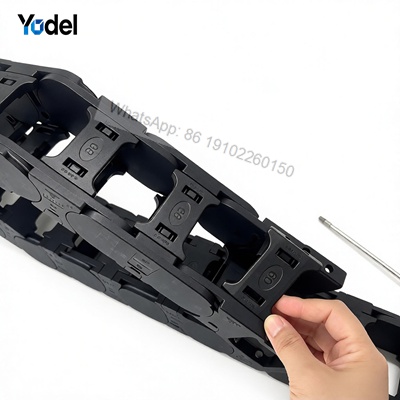

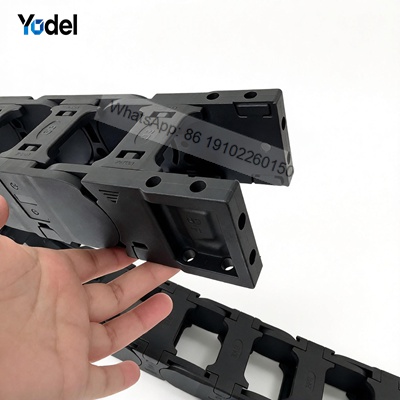

• Hinged Snap-Open Crossbars (Inner Bending Radius): The crossbars along the inner bending radius feature a robust hinge mechanism that allows them to snap open smoothly without detaching completely from the chain body. This hinged design prevents crossbars from being lost or misplaced during field adjustments and enables rapid cable insertion.

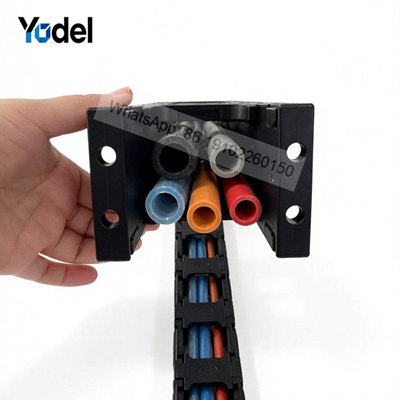

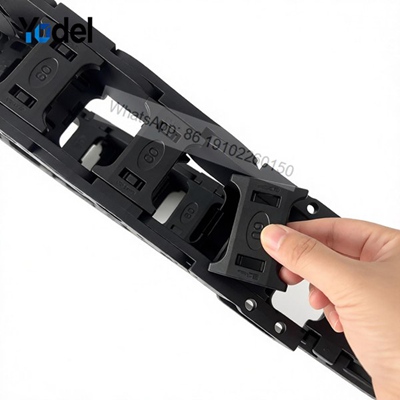

• Removable Crossbars (Outer Bending Side): On the outer non-bending side, the crossbars can be effortlessly removed using a standard flathead screwdriver. This hybrid configuration gives technicians complete 360-degree accessibility to lay cables, perform maintenance, or swap damaged lines in a fraction of the time required by traditional closed carriers.

Comprehensive OEM / ODM Customization Options

As a specialized manufacturer, we understand that standard off-the-shelf cable carriers may not fit every unique industrial application. We offer flexible B2B customization services tailored to your exact machinery blueprints:

• Custom Dimensions (Length, Inner Height & Width): While this series features a standard 45mm inner height, the total length, inner width (W), and external dimensions can be fully customized according to your space constraints and cable bundle diameter.

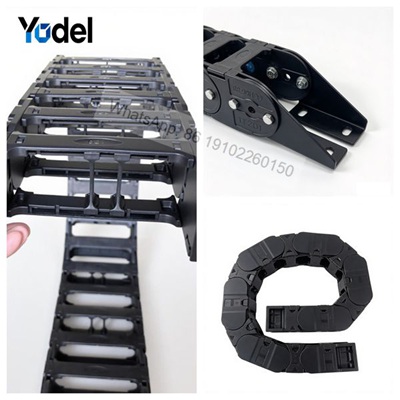

• Internal Cavity Dividers & Separators: To prevent cables and hoses from friction, tangling, or uneven weight distribution inside the chain cavity, we supply customizable vertical separators and horizontal shelving/dividers. This ensures organized multi-layer cable layout.
• Custom End Connector Materials: Depending on your working environment and mechanical load requirements, end brackets/connectors can be customized in various materials, including high-strength reinforced nylon, galvanized carbon steel, or corrosion-resistant stainless steel.

High-Grade Reinforced Nylon PA66 Material

Engineered for extreme wear resistance and longevity, our drag chains are molded from high-performance reinforced Polyamide 66 (PA66) enriched with glass fiber reinforcement, UV stabilizers, and anti-aging agents. Key material benefits include:

• Superior Load Capacity & Impact Resistance: Maintains high tensile strength and structural stability even under high acceleration, heavy tensile loads, and long unsupported travel distances.
• Wide Thermal Resilience: Operates reliably in temperature environments ranging from -40°C (-40°F) to +130°C (+266°F).
• Chemical & Oil Corrosion Resistance: Highly resistant to industrial lubricants, cutting fluids, mild acids, alkalis, and fuel splashes commonly present in CNC machining environments.
• Quiet & Smooth Motion: Optimized pitch design and precise joint tolerances minimize noise emission and mechanical friction during high-speed travel.

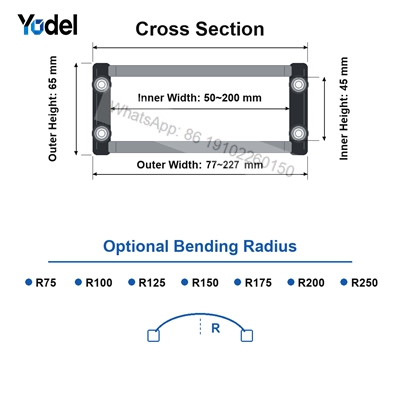

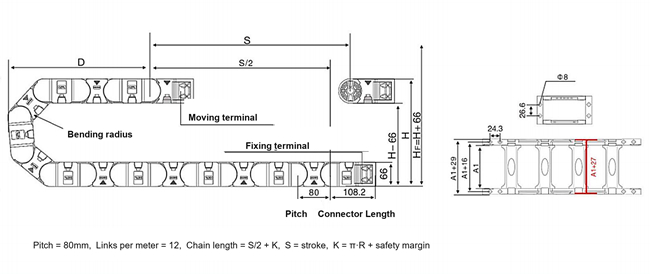

Technical Specifications & Product Attributes

Available Models

Wide Industrial Applications

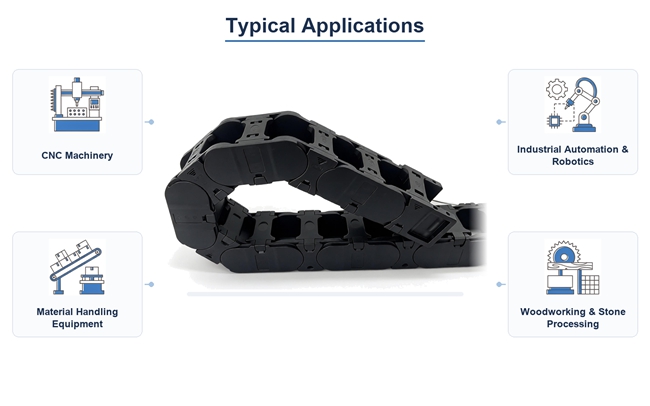

Our 45mm side-open bridge cable carriers are widely deployed across various high-precision and heavy-duty industrial sectors, including:

• CNC Machinery: Gantry machining centers, CNC lathes, laser cutting machines, and milling equipment.
• Industrial Automation & Robotics: Multi-axis industrial robots, automated pick-and-place systems, and conveyor lines.
• Material Handling Equipment: Automated storage and retrieval systems (ASRS), overhead cranes, and stackers.
• Woodworking & Stone Processing: Heavy-duty stone routers and woodworking machinery requiring easy cable maintenance.

Installation & Maintenance Guidelines

To ensure optimal longevity of both the drag chain and internal cables, follow these best practices during installation:

1. Calculate Clearance: Ensure at least 10% to 15% clearance space inside the chain cavity for cables and hoses to move freely without binding.
2. Distribute Weight Evenly: Use internal vertical separators or horizontal dividers to separate power cables, control lines, and fluid hoses, preventing twisting or friction wear.
3. Correct Bending Radius: Always select a bending radius that complies with the minimum bending radius specified by your cable manufacturer.

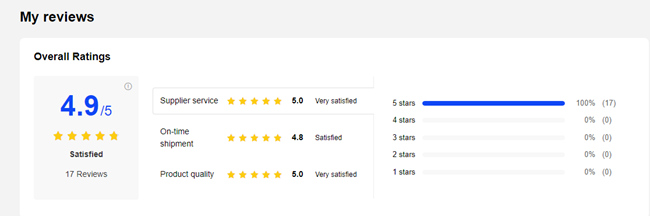

My Service and Reviews

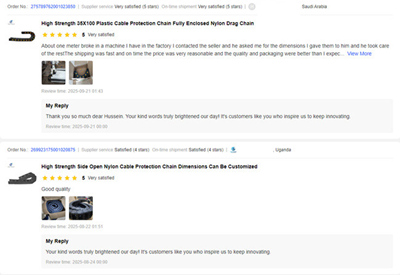

Our nylon and steel drag chains earn high praise from global buyers across the United States, Mexico, the Netherlands, France, Saudi Arabia, Kuwait, Argentina, Israel, Malaysia, Lebanon, Chile, Peru, Uganda, etc.

All reviews shown are genuine feedback from verified customers.

We provide comprehensive after-sales support:

• 30-day return & refund for non-man-made product quality issues after delivery.
• Non-disclosure agreements can be signed upon request.
• Our support team stays online 12 hours daily to offer professional guidance.

Why Partner with Tianjin Yodel Technology Co., Ltd.?

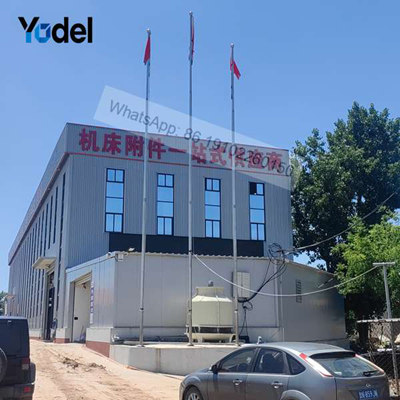

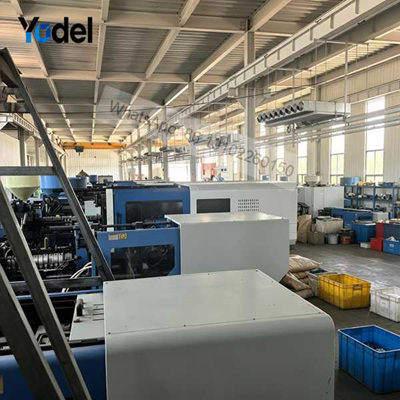

Tianjin Yodel Technology Co., Ltd. is a specialized manufacturer and supplier of industrial drag chains, way covers, and machine tool accessories. With state-of-the-art injection molding facilities, complete mold inventories, and strict ISO-aligned quality inspection protocols, we deliver precision-engineered solutions tailored to international industrial standards. We offer OEM/ODM customization, flexible minimum order quantities, competitive factory-direct pricing, and dependable global delivery to support your equipment manufacturing and maintenance needs.

Send your drawing or cable requirements to receive a suitable solution.
